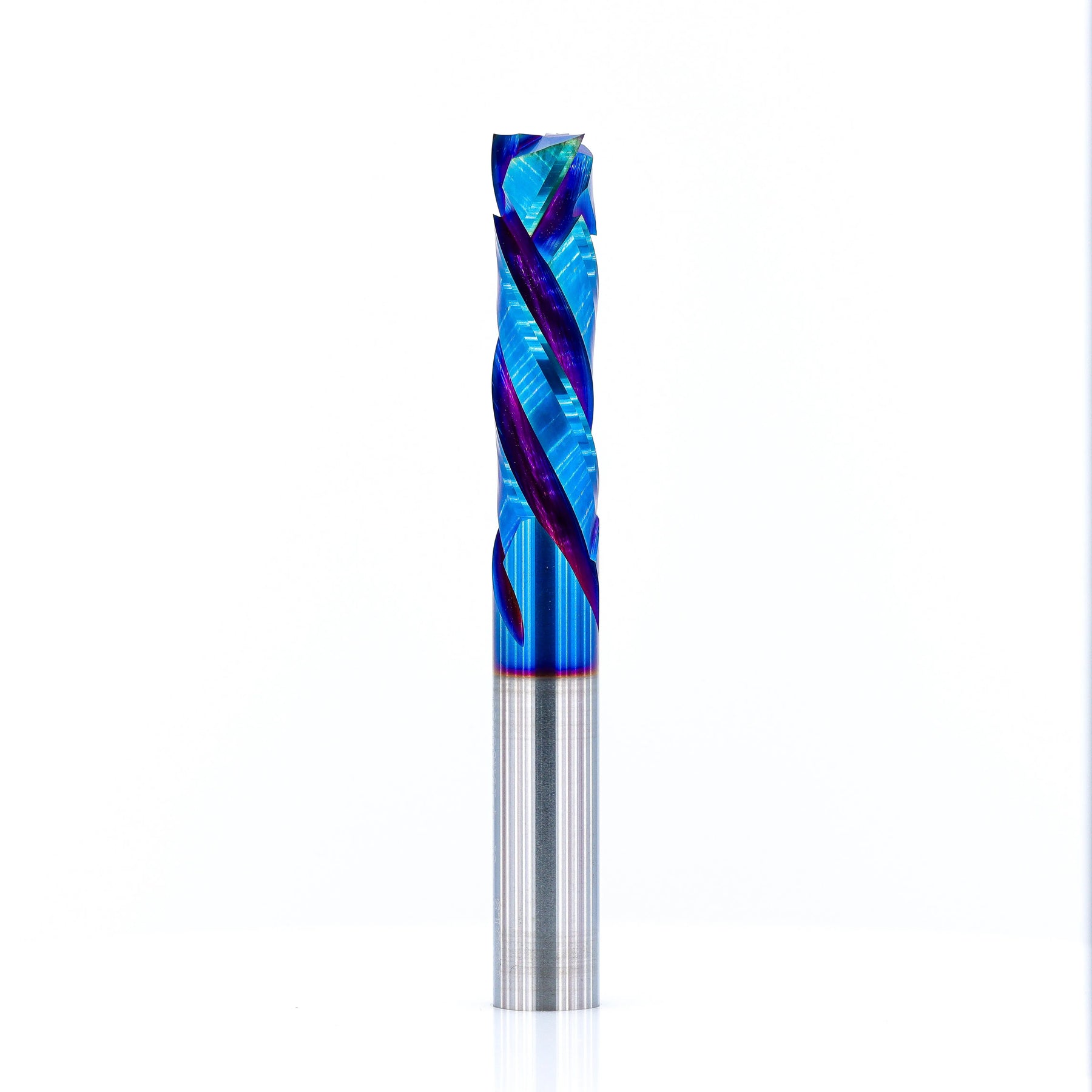

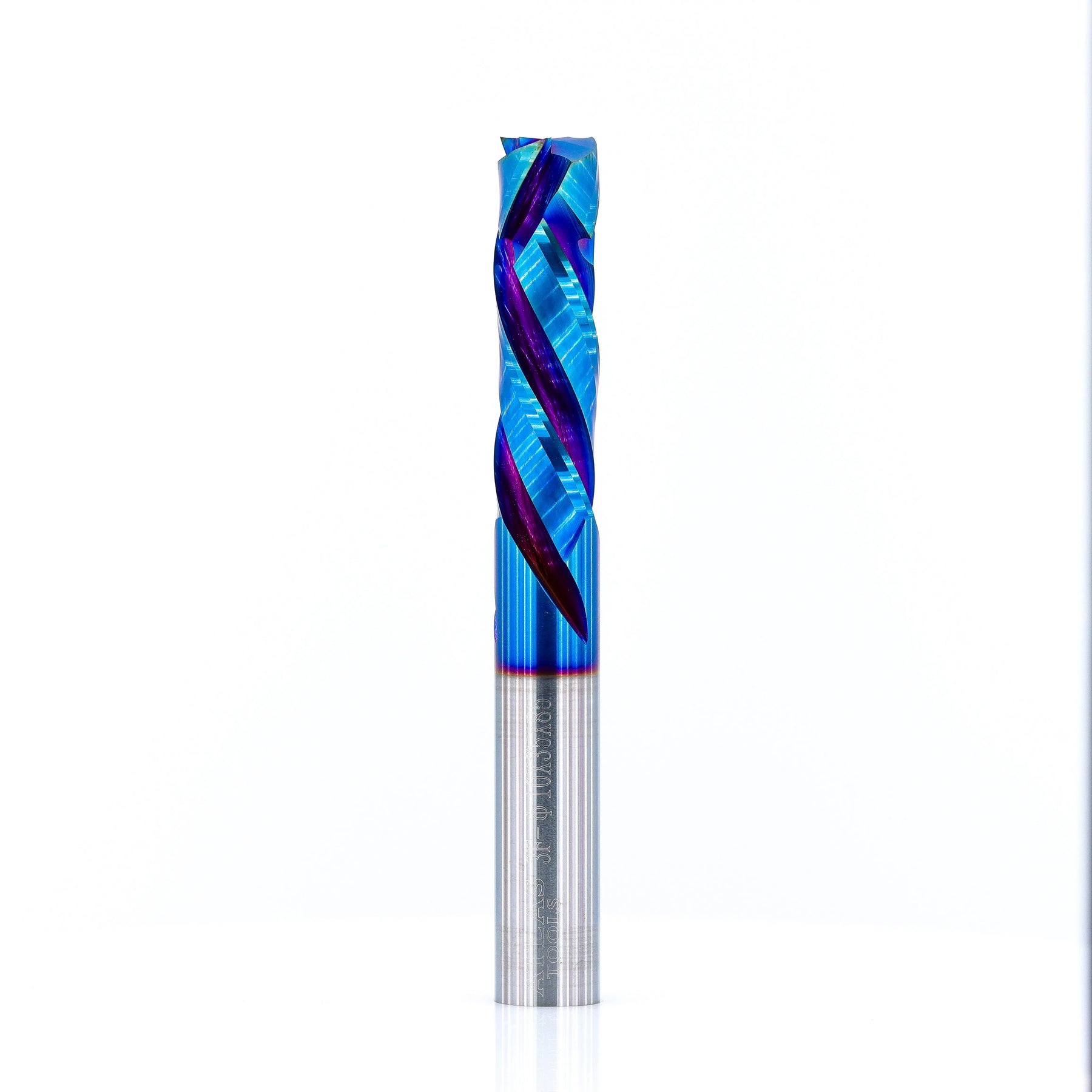

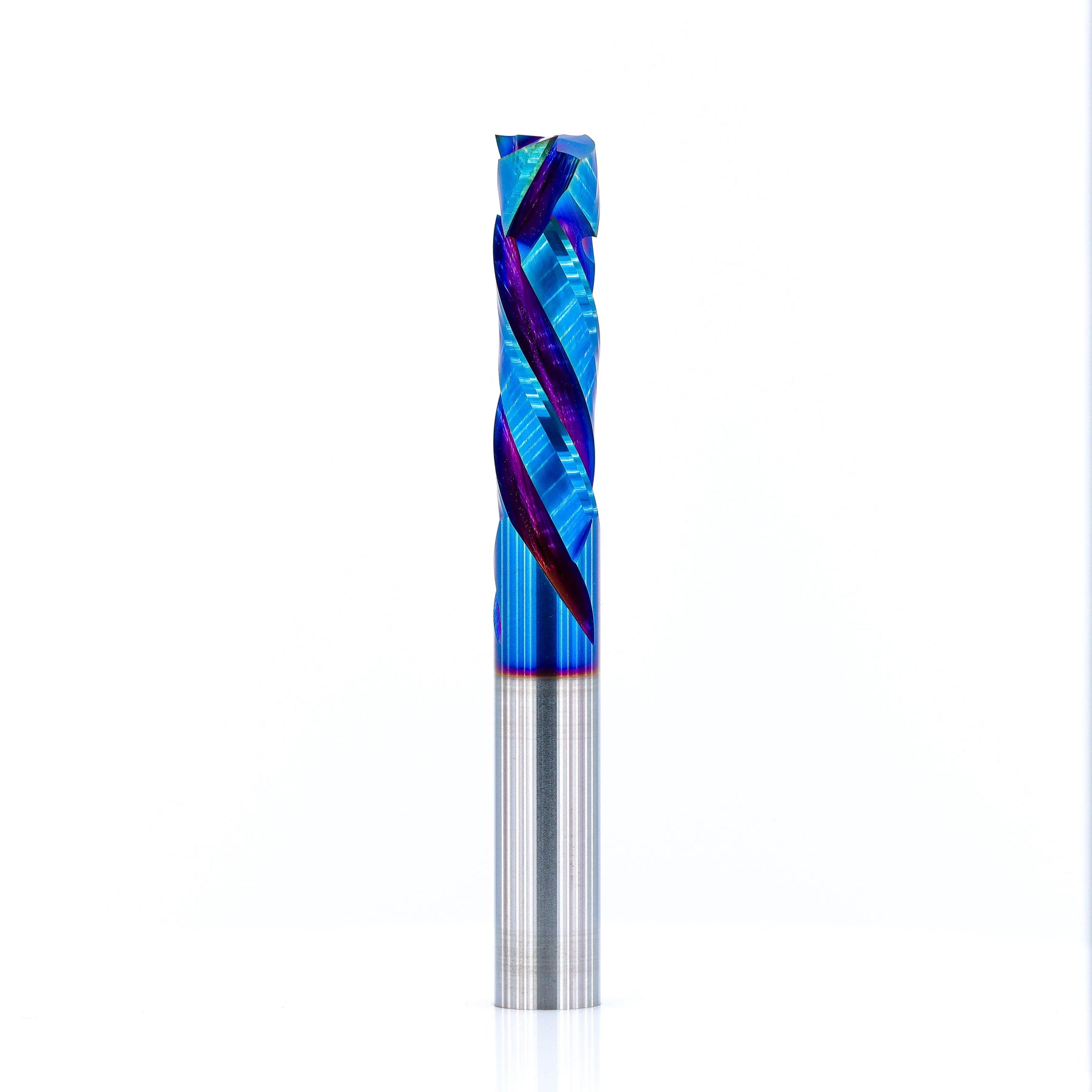

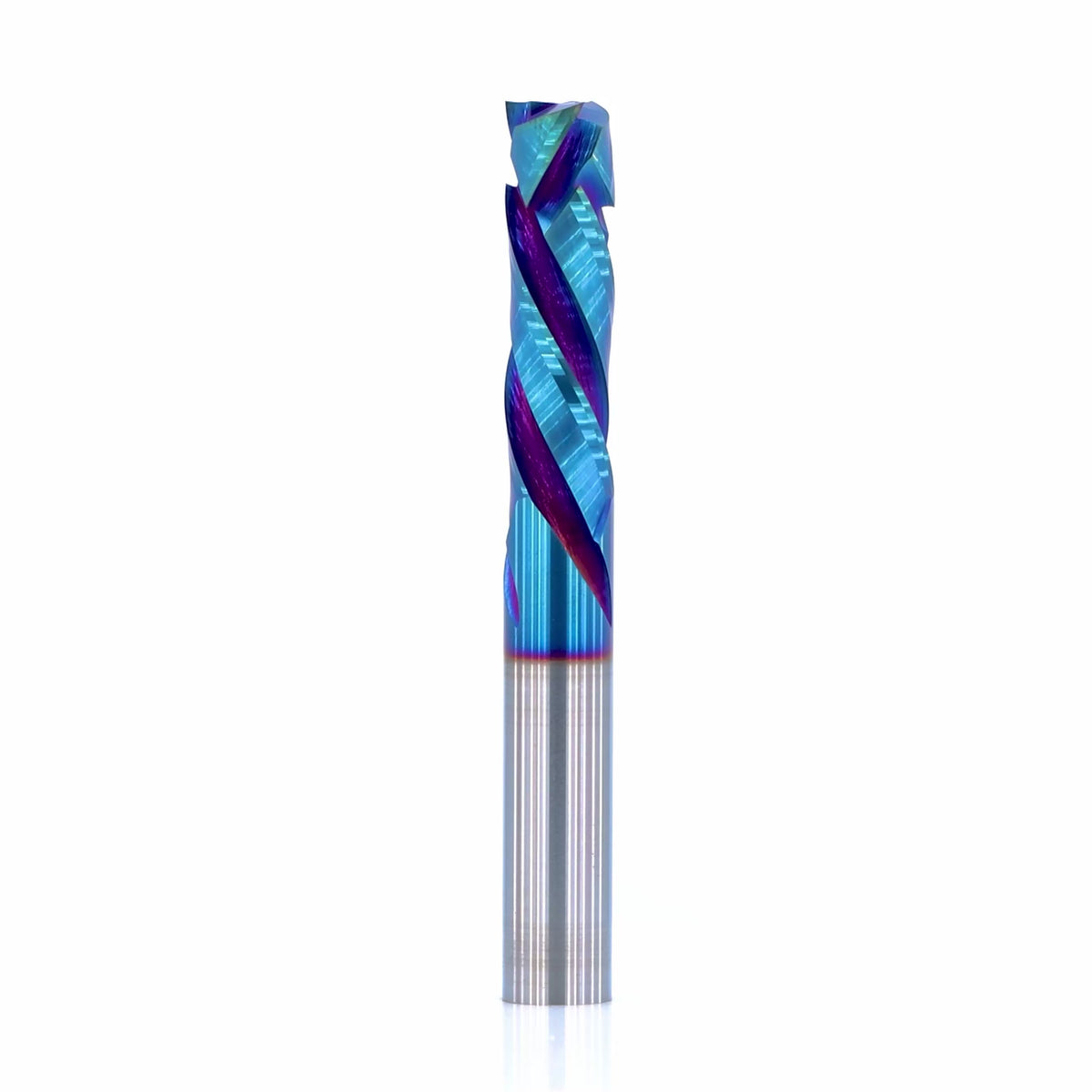

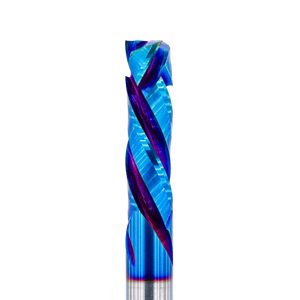

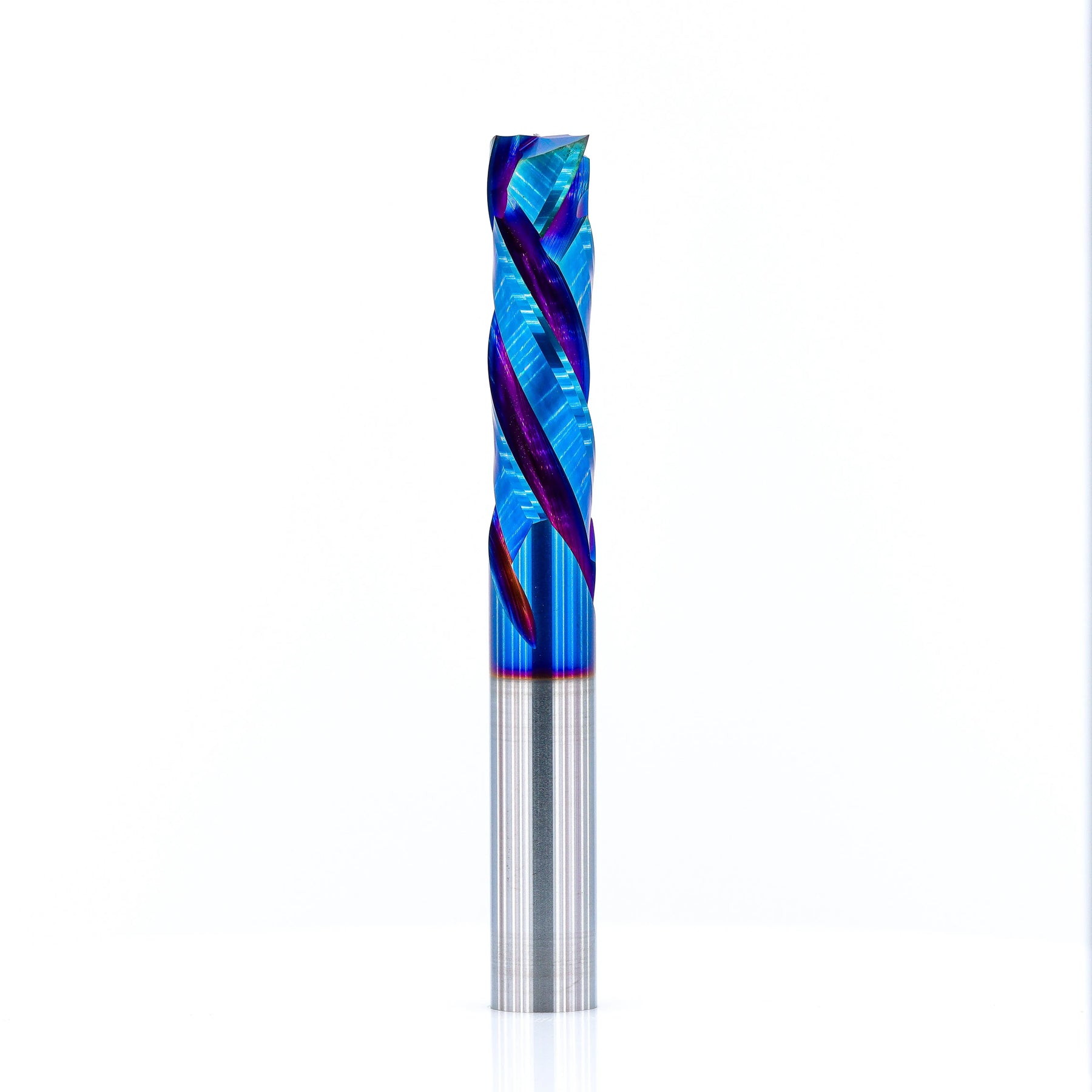

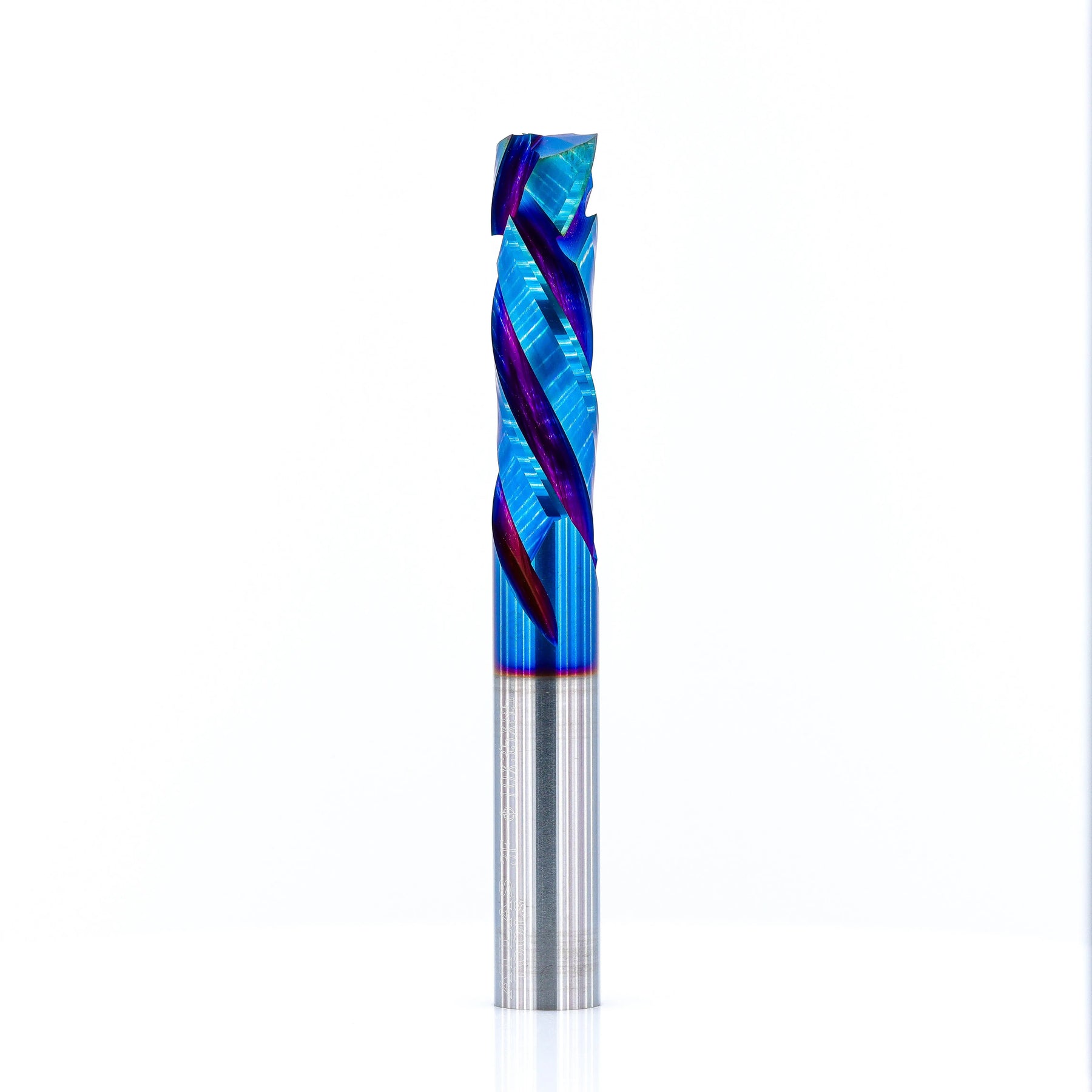

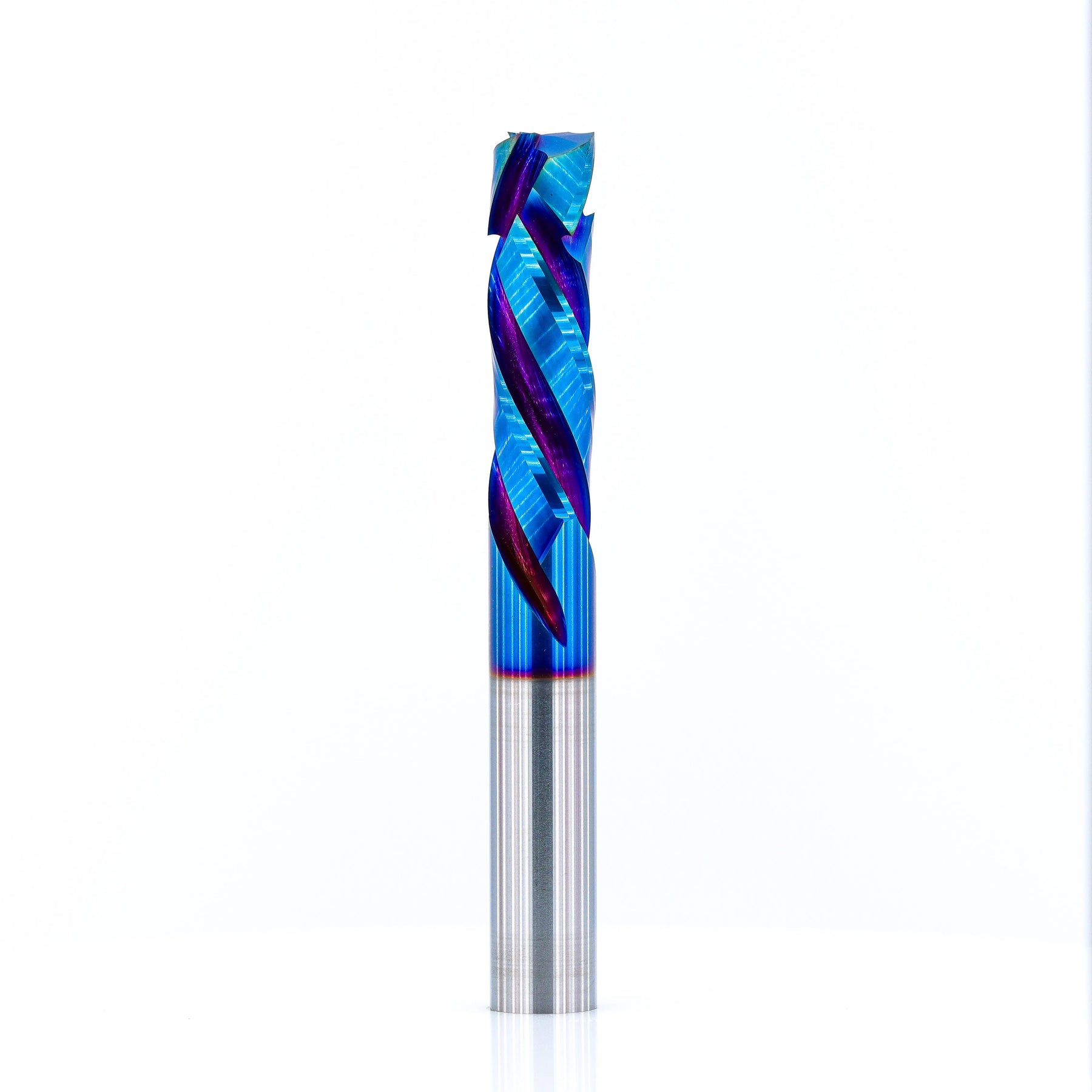

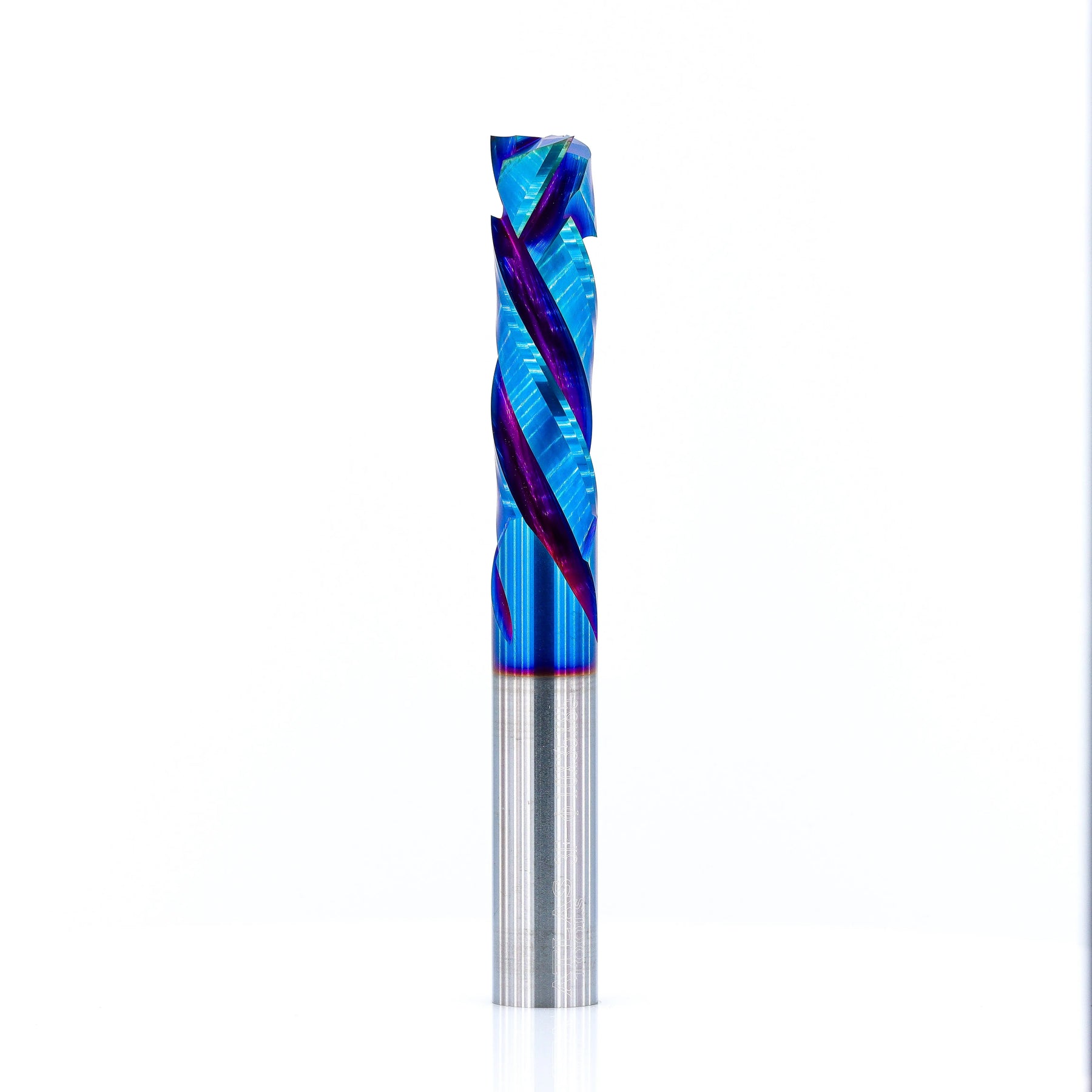

Compression Spiral Router Bit - 10x35 3F (Nano Coating)
Built for clean cutting, reliable tool life and professional results.
$195.00
+GST
Sale
RRP
Standard Shipping Australia-wide just $12 at checkout
Secure checkout
256-bit SSL encrypted
Large Stocks
No delays
Expert support
Real advice
Specifications
Precision cutting. Clean results.
This Compression Bit combines both up-cut and down-cut flutes to deliver chip-free edges on the top and bottom surfaces of your workpiece. With a cutting size of 10mm × 35mm, it’s built for CNC routing, joinery and furniture production. By pulling and pushing chips toward the centre, it leaves crisp edges on plywood, MDF, solid timber and laminates.
Key benefits
Chip-free edges — up-cut and down-cut sections protect both faces for cleaner results.
Nano coating reduces friction and heat build-up for extended tool life.
3-flute geometry for smoother walls, stable cutting and better accuracy.
Ideal for CNC routing of wood, MDF, plywood, laminates and non-abrasive composites.
Built for tougher runs in hardwoods, plywood and plastics where standard bits dull quickly.
| Spec | Result |
|---|---|
| Diameter | 10mm |
| Cut Length | 35mm |
| Shank (Collet Size) | 10mm |
| Overall Length | 70mm |
| Flutes | 3 |
| Coating | Nano (NaCO) |
Nano coating for higher feed rates
An advanced nano coating enhances heat resistance and lubricity, allowing higher feed rates while prolonging tool life. This makes the bit ideal for demanding production work in hardwoods, plywood and plastics.
Lower friction = less heat build-up, cleaner cutting, and a more consistent finish across long runs.
Versatility and benefits
Thanks to its 3-flute geometry, this bit excels at dados, grooves, slots, mortises, and edge trimming. It’s a favourite among cabinetmakers, sign makers, and CNC hobbyists for cutting hardwoods, laminates, veneers and sheet goods, and it can be used on thin aluminium where suitable. Whether you’re creating pockets, trimming laminates, or nesting parts, this compression bit improves productivity and finish quality.
Why Atlas?
Longer tool life
Built for durability and wear resistance.
Cleaner cut edges
Engineered for best quality.
Best Carbide
Better Results
Numerous Coatings
Reduces friction, heat and promotes long tool life.
MUST HAVE PRODUCTS
Hand-picked products and collections that pair well with this item.
CNC Tool Holders
VIEW RANGEPRODUCT FEATURES
Key features engineered for cleaner cuts, longer tool life and better machining performance.
Polished Flutes
For Maximum Chip Evacuation and reduction of heat
Premium Carbide
We use the best carbide for each application - From German Ceratizit to Kennametal.
Compression Geometry
Prevents burrs and minimizes part lift during cuts
Nano Coating
Excellent Heat Resilliance and Increases tool durability by 2-3 times.
