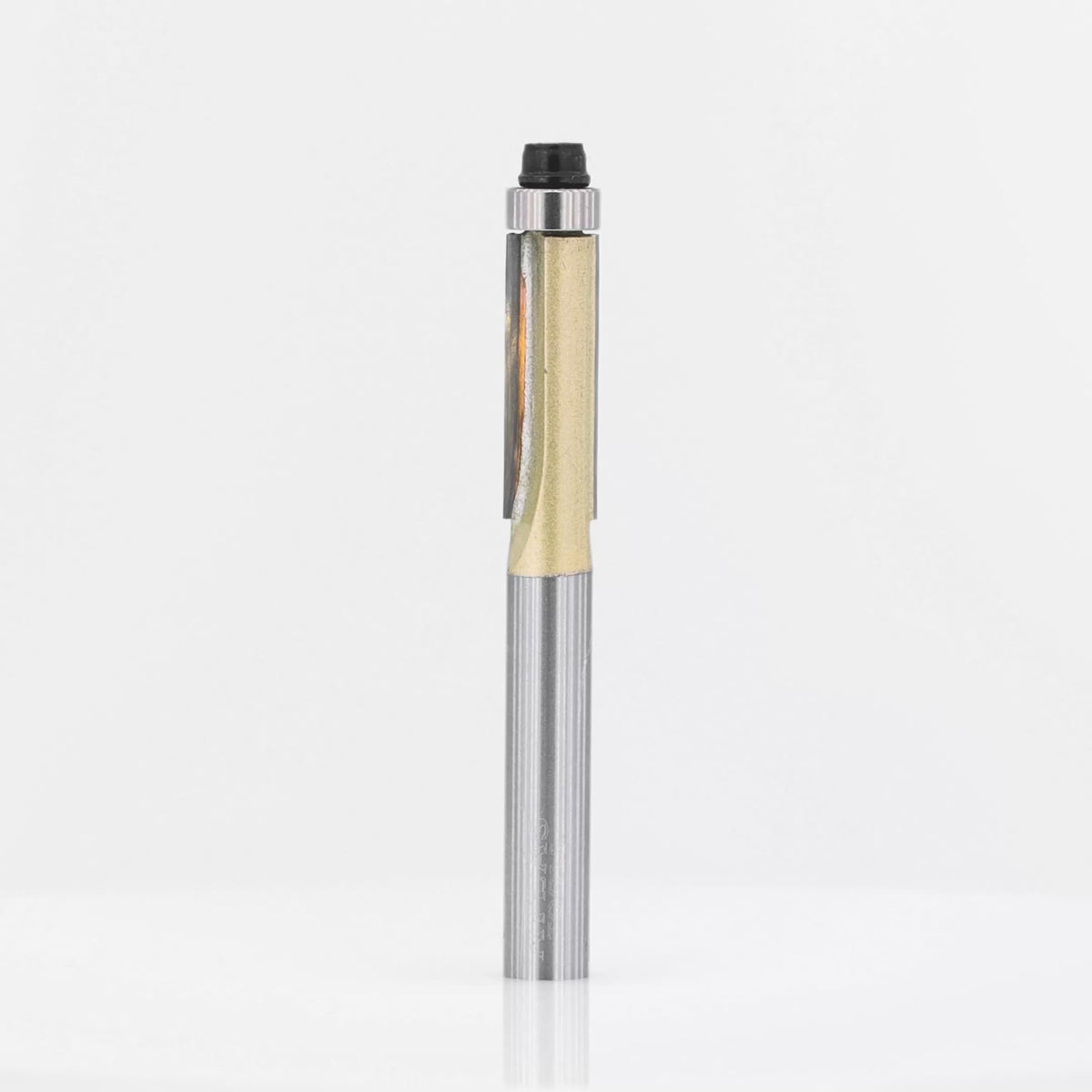

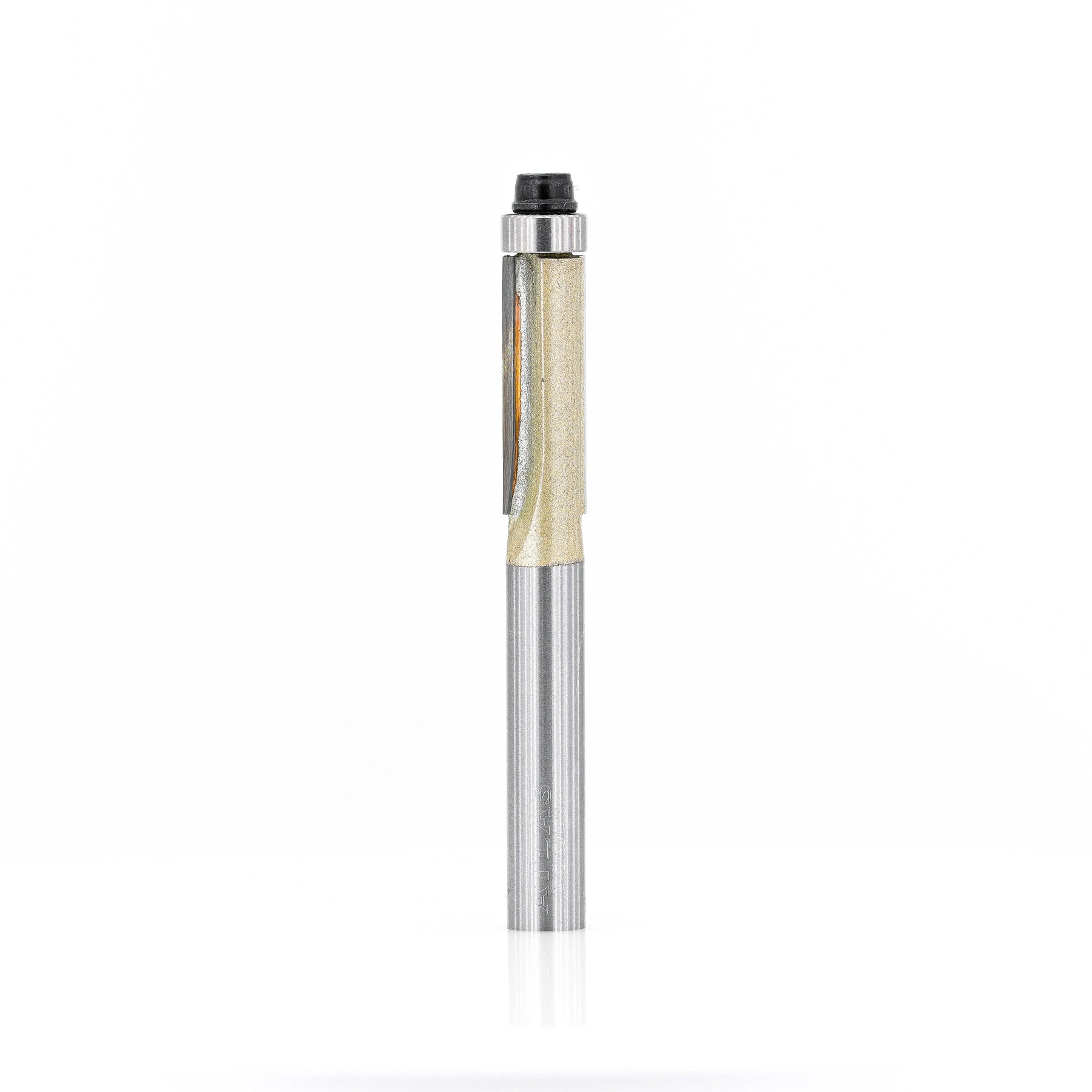

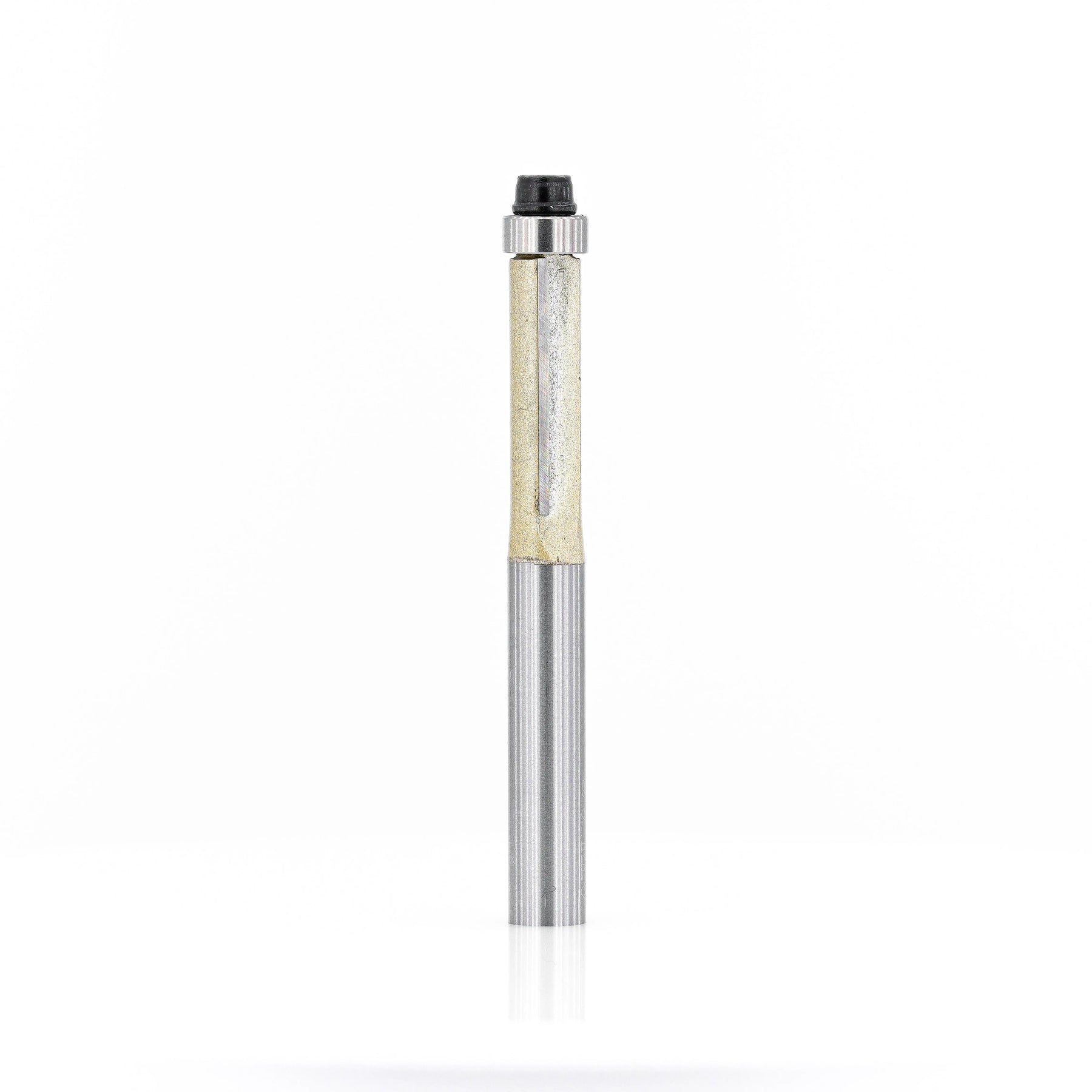

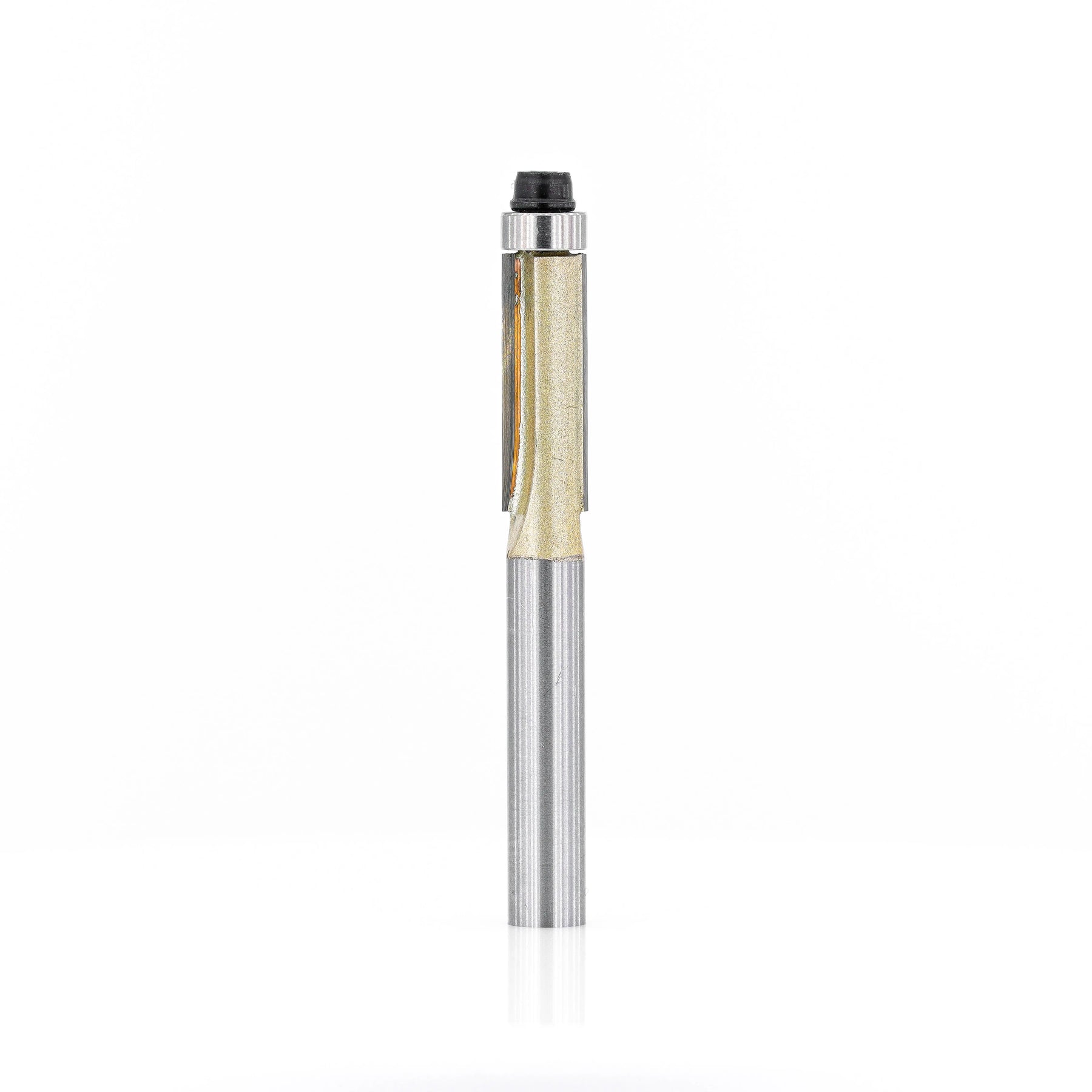

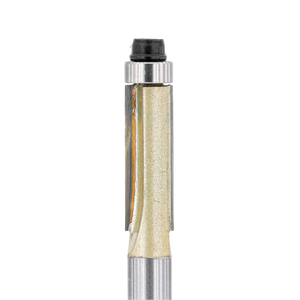

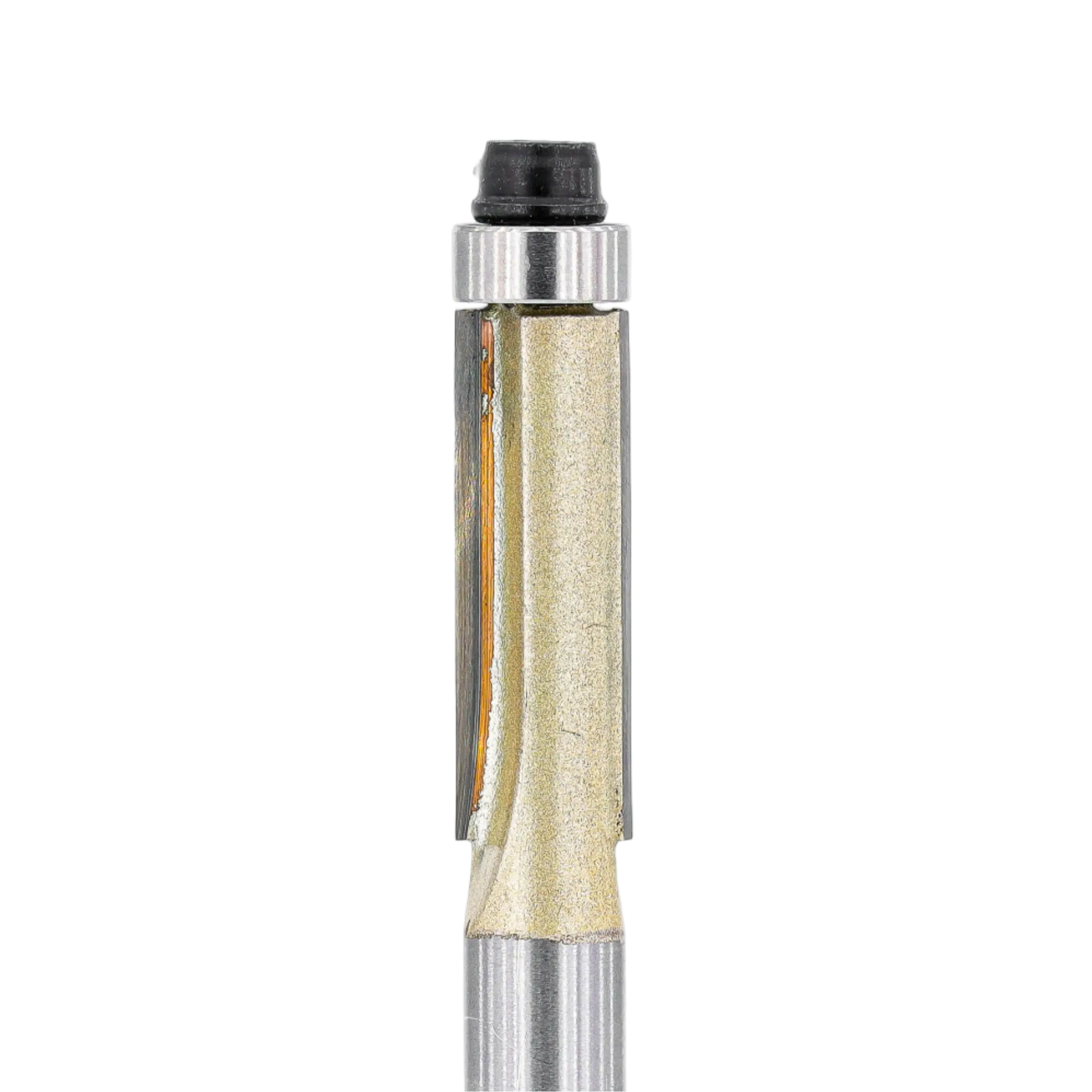

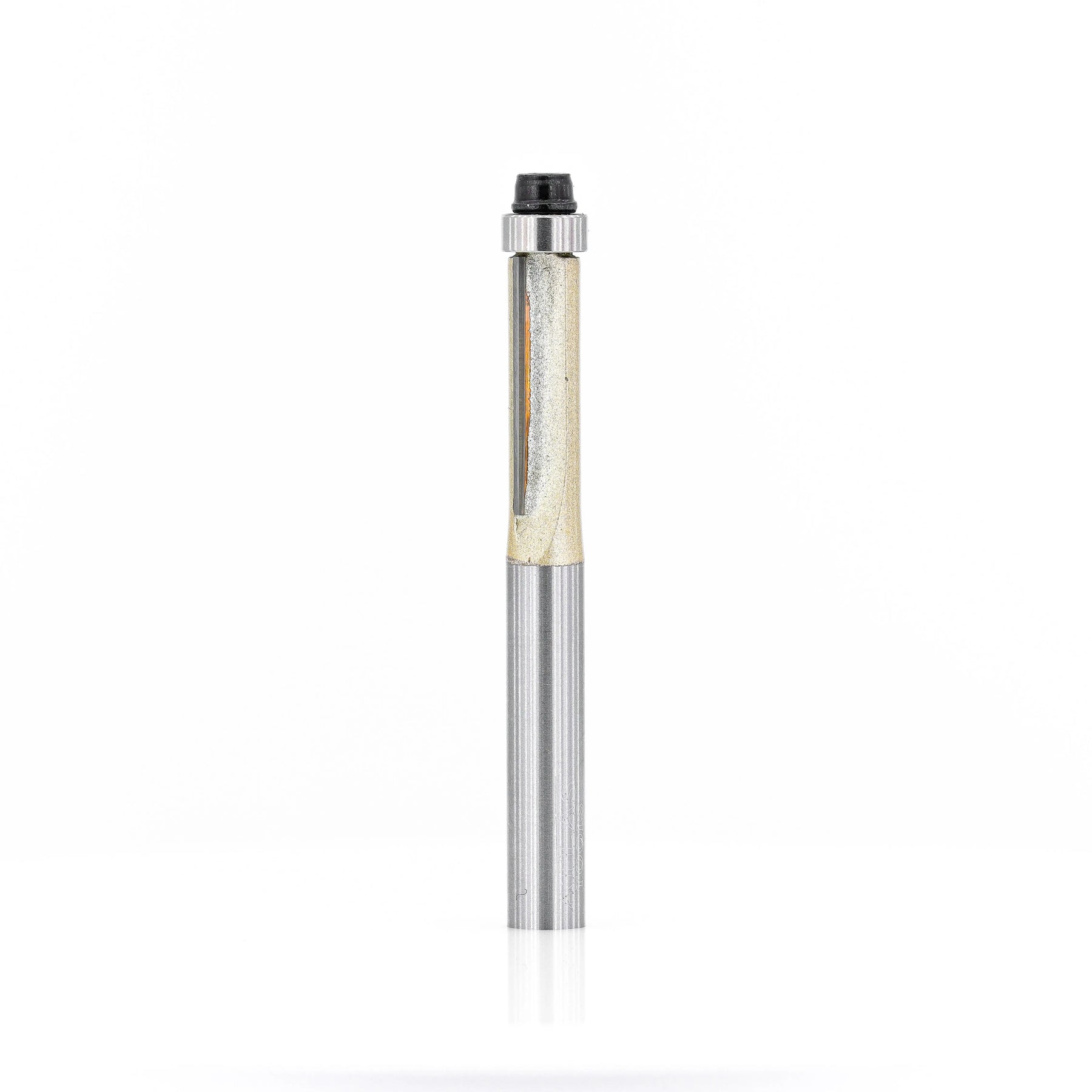

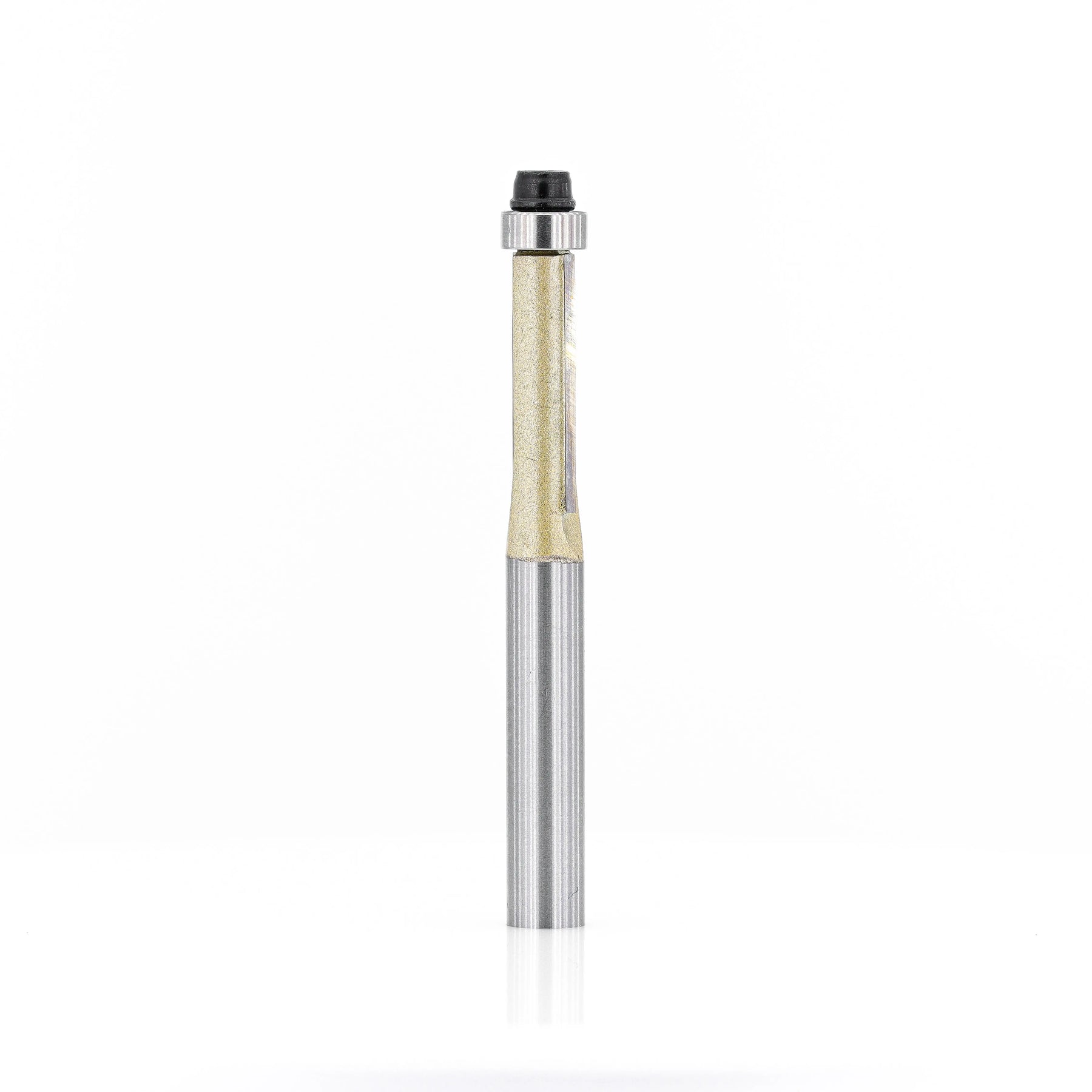

Flush Trim Router Bit - 6.35x22

$36.90 +GST

Sale Sold out

Stardard Shipping Australia-wide just $12 on Checkout!

The Flush Trim Bit is built for clean, accurate edge trimming where a template or existing surface guides the cut. In 6.35×22mm, it’s ideal for producing smooth, true edges on laminates, timber, plastics and composite panels with strong control and repeatability.

Key benefits

Clean, accurate trimming for following templates and cutting panels or laminates exactly flush.

Bearing-guided control helps maintain consistent edge following and reduces the chance of overcutting.

Smooth edge finish for tidying laminate, timber and sheet materials with minimal cleanup.

Carbide cutting edges provide strong wear resistance and reliable cutting performance over repeated jobs.

Works well across timber, laminate, MDF, plywood, plastics and other trim-friendly sheet materials.

Spec	Result
Diameter	6.35mm
Cut Length	22mm
Overall Length	50mm
Shank (Collet Size)	6.35mm
Flutes	2
Coating	None
Guide	Bearing Guided
Cutting Material	Tungsten Carbide
Applications	Flush trimming, template routing, laminate trimming, edge finishing

Controlled trimming with repeatable results

A flush trim bit is all about following an existing edge cleanly and consistently. The bearing-guided format helps maintain control while the carbide cutting edges hold accuracy through repeated trimming passes.

Ideal where edge quality matters—helping reduce mismatch between template and finished part while leaving a neat trimmed edge.

Applications

A solid choice for template work, panel trimming, laminate finishing, edge cleanup and duplicate part production. Suitable for router tables, handheld routers and other trimming operations where an accurate finished profile is required.

View full details

This tool is recommended for the following materials.

ACM

Brass

Acrylic

Particleboard

Foamed PVC

HDPE

Softwood

HD Foam

Plywood

Copper

Aluminium

Likelyhood is that this is either due to incorrect speed/feed rates, the wrong diameter (size) being used, or too much material being removed in one pass.
Suggested fixes include: upgrading to a larger diameter tool, checking the material compatability and speed/feed recommendation on our product's page, or consulting our team on better recommendations.

How do I get the best tool Life?

Clean off any aluminium or plastic swarf that may be stuck to the tool, and wipe down with Isopropyl Alcohol, or Methylated Spirits.
Additionally, in running carbide tools, make sure that workholding is rigid and loose parts are secured during cutting to prevent vibration and premature tool snapping or chipping.
Ensure tool paths include lead-ins, and that tool stick-out is a minimal as possible.
Make sure you are using premium good-quality collets and tool holders with high-accuracy

How fast are orders dispatched?

Same day if before 11am, otherwise the next morning.
If your order is urgent, please add notes in the order and the team may be able to fast-track dispatch.

What if I ordered the wrong bit?

If you wish to return, please see our return policy in the footer. There is a 15% restocking fee and freight is the customers responsibility.

Can I get technical advice before ordering?

Absolutely. Please feel free to call the team, who are more than happy to help, give guidance and point you in the right direction for your requirements.

Do we offer trade pricing or bulk discounts?

Yes. Please contact the team first before ordering. We will assess the quantity and may provide bulk discounts via a coupon or setting you up with an account.

Can I use CNC router bits in a handheld router?

Yes, absolutely. You may be more prone to backlash and chatter without a rigid setup.

How do I get the best edge quality?

Sharp new tools always leave the best edge finish; therefore it is advantageous to use a roughing tool, and a new clean finishing tool for the last pass
