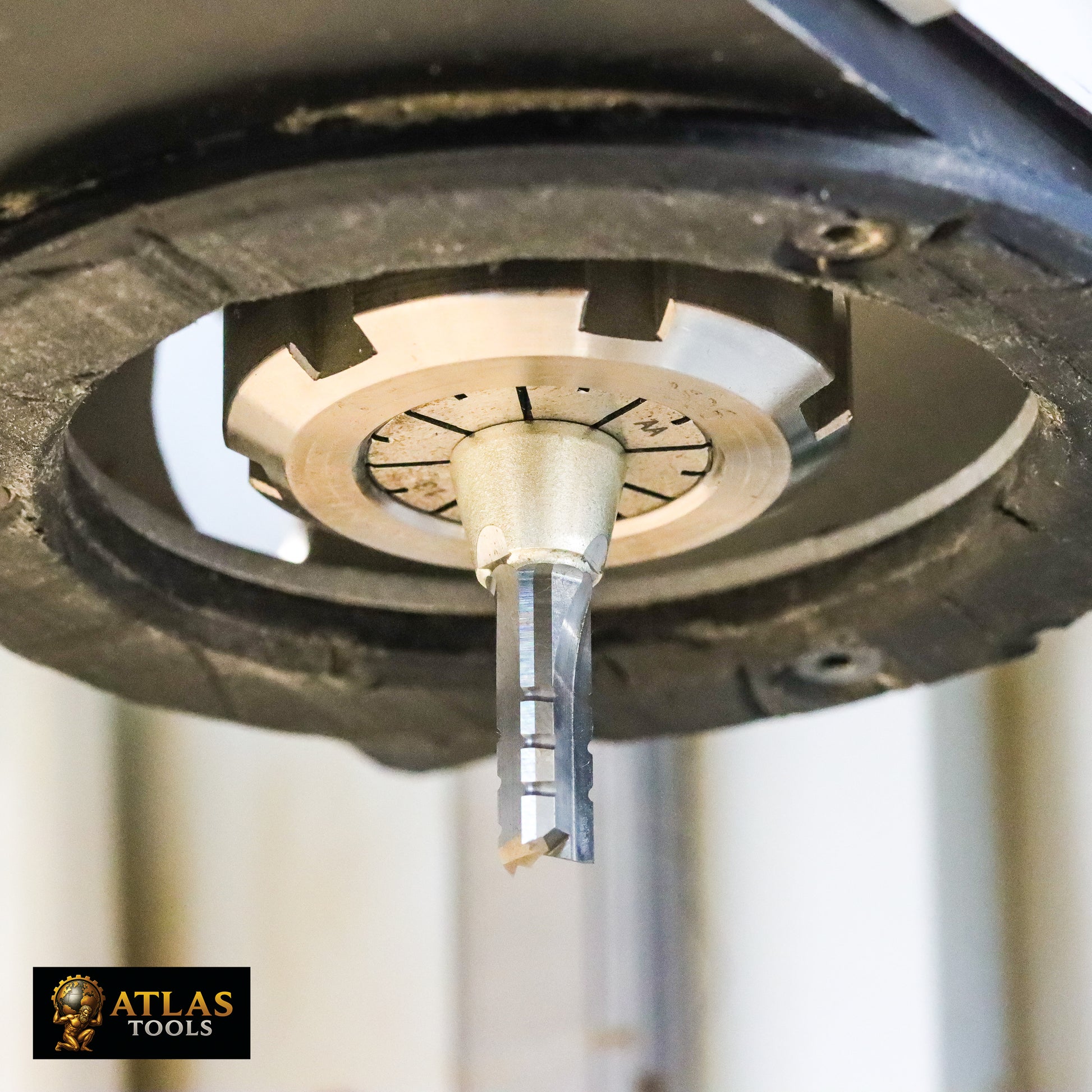

Atlas Tools TCT Router Bit 6x22 In Tool Holder Close Up

My Store

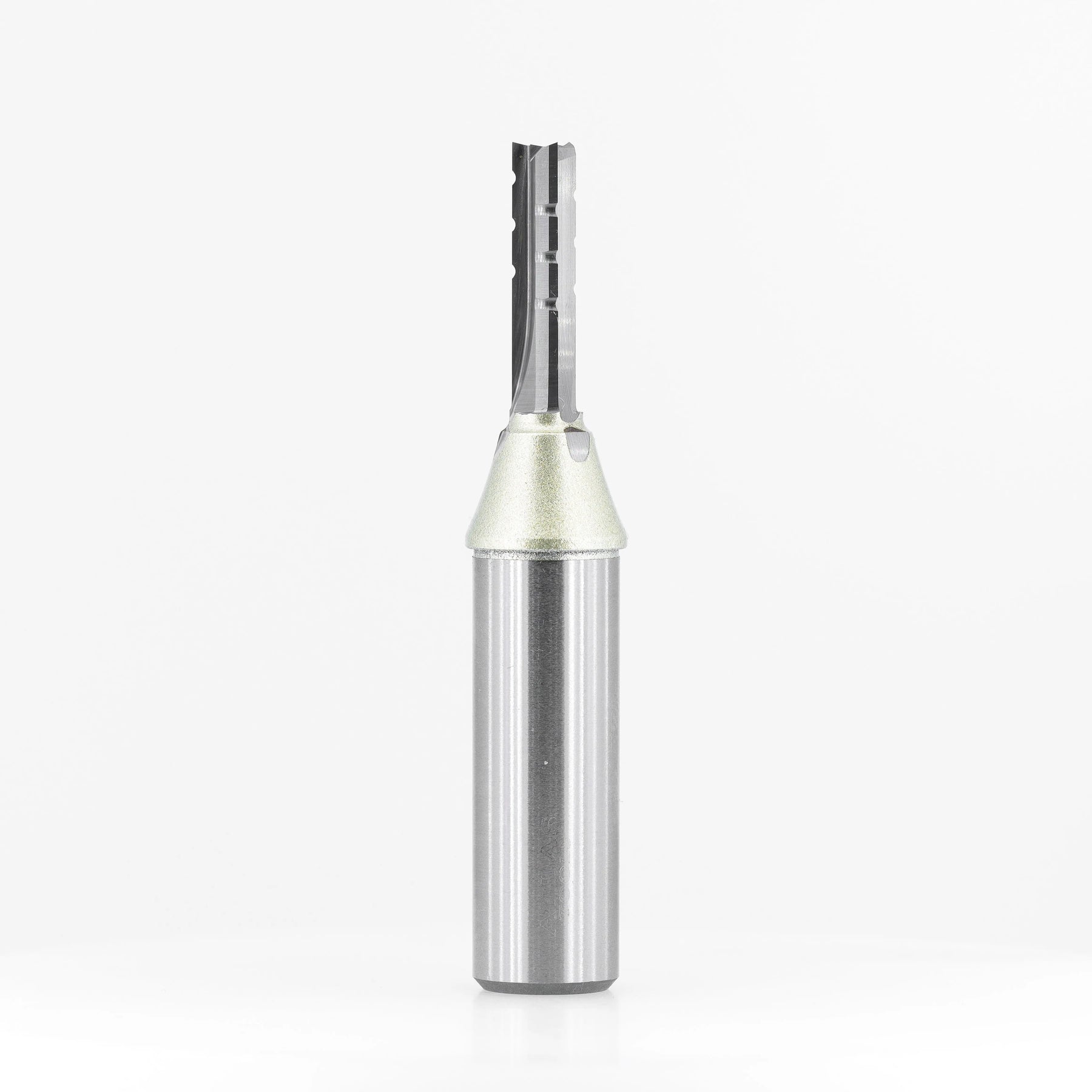

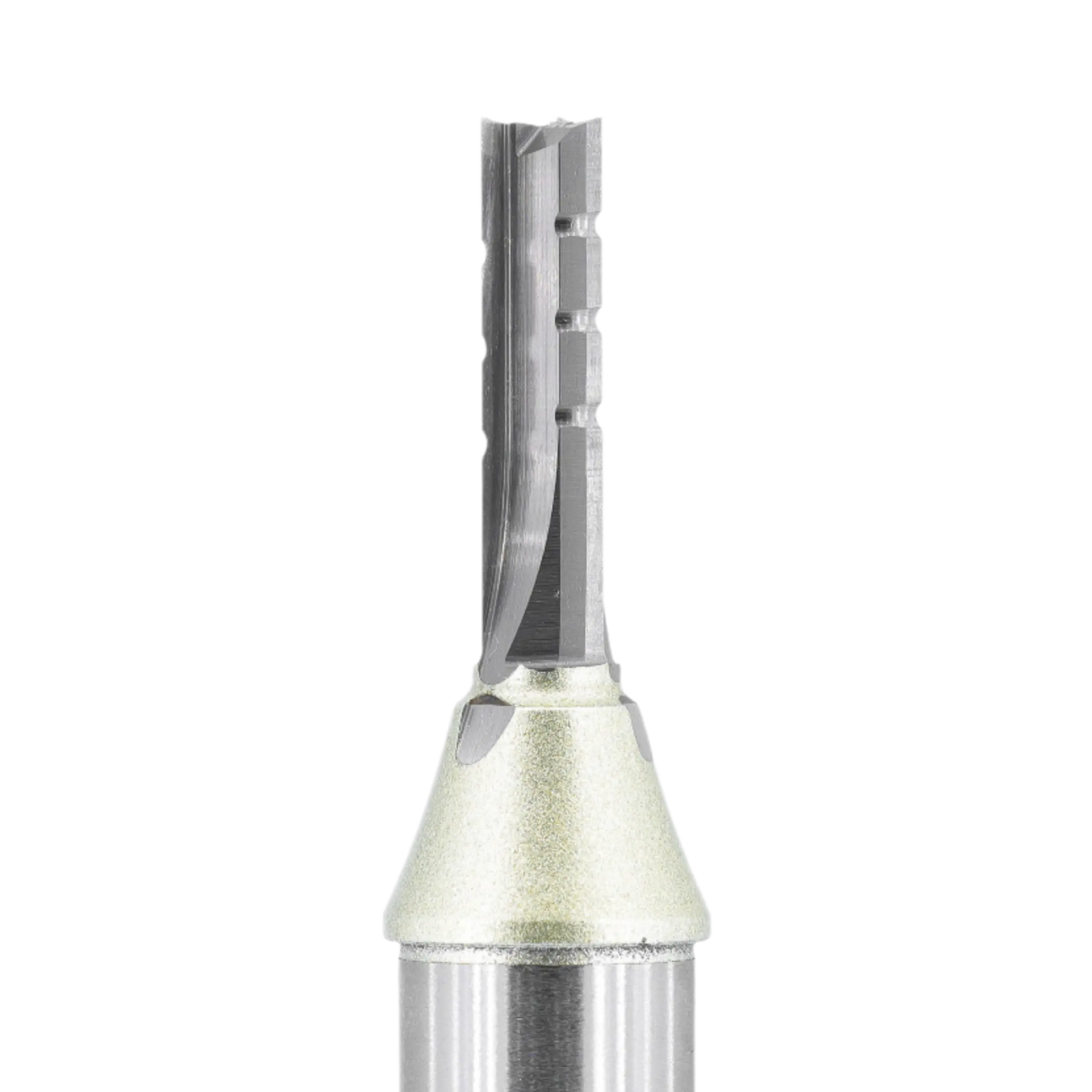

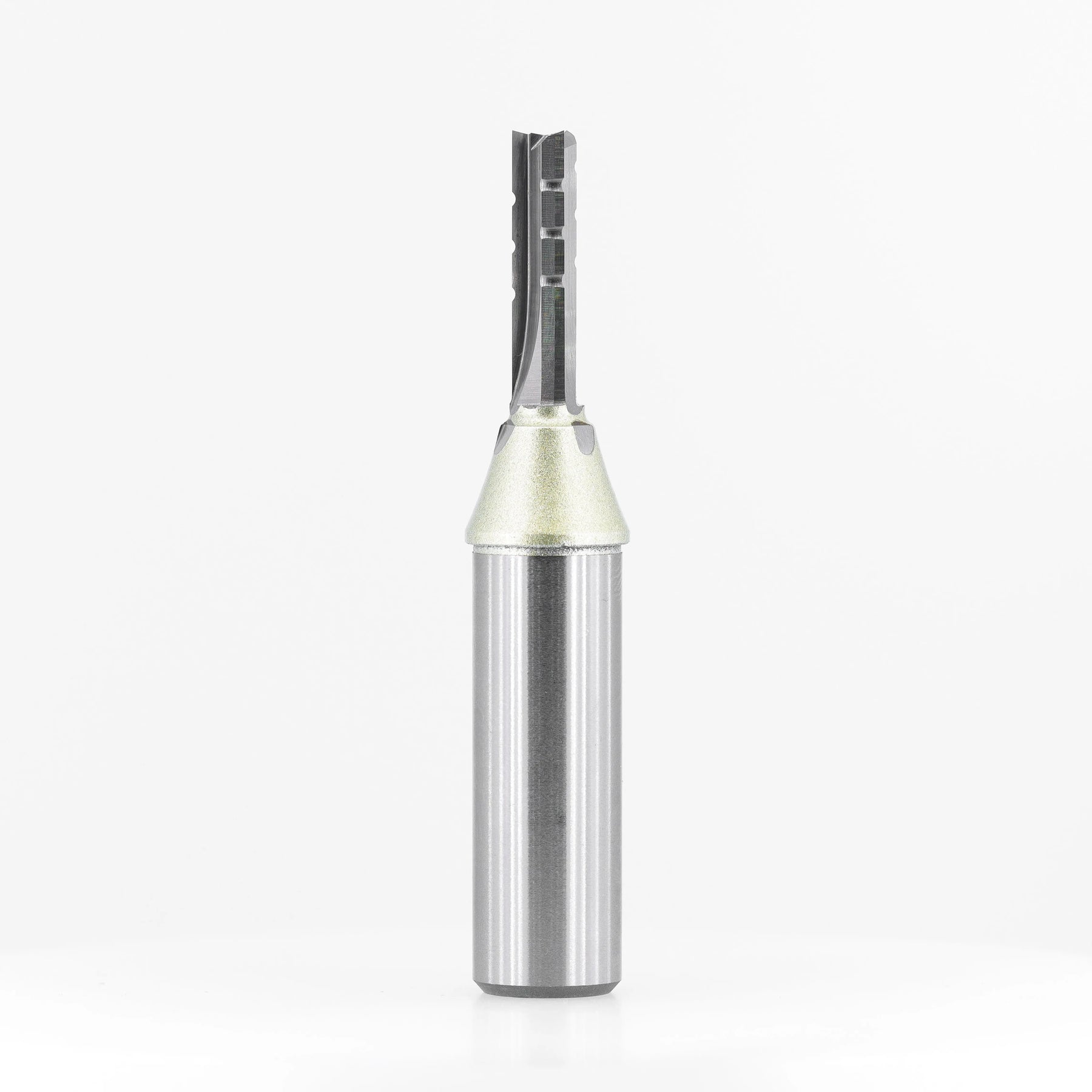

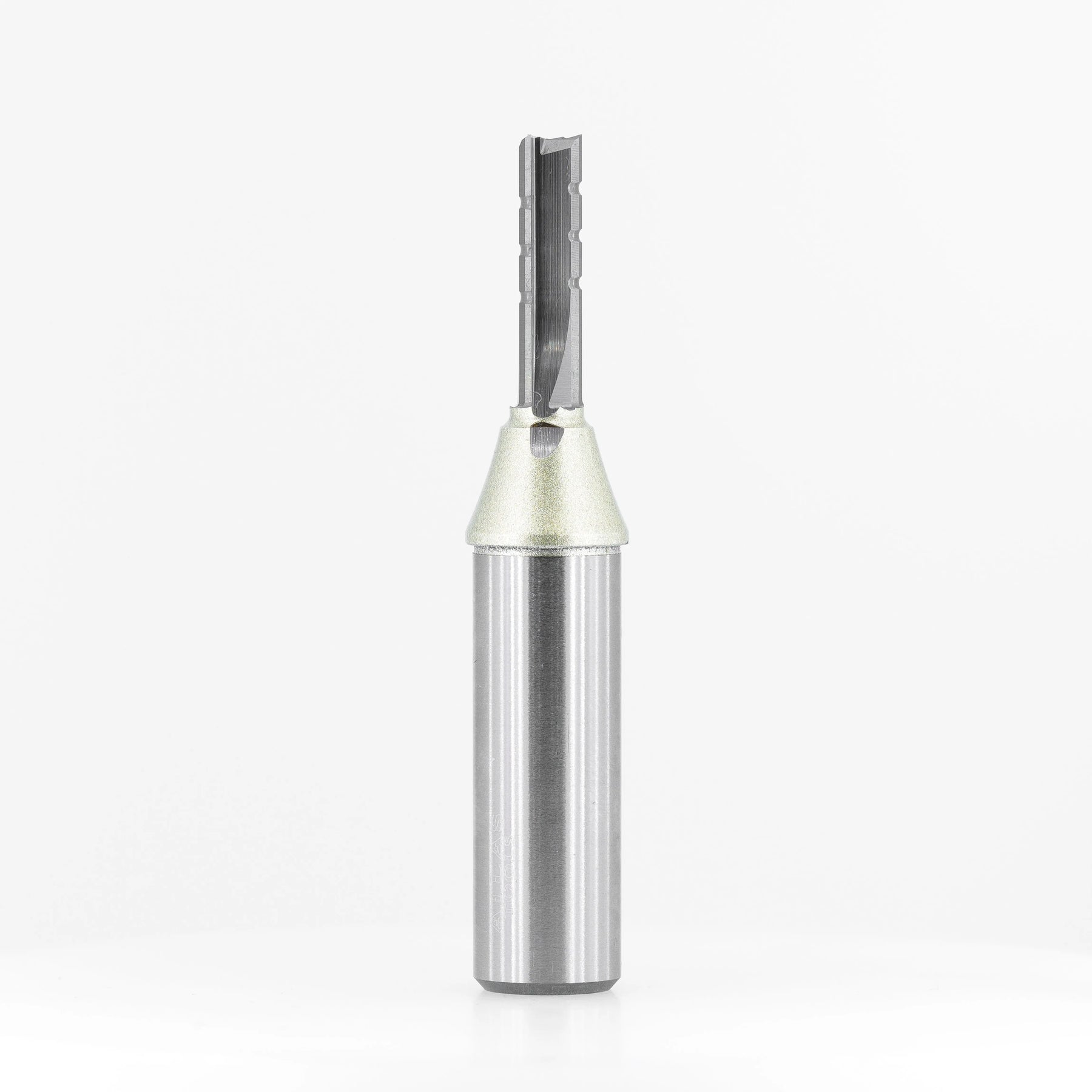

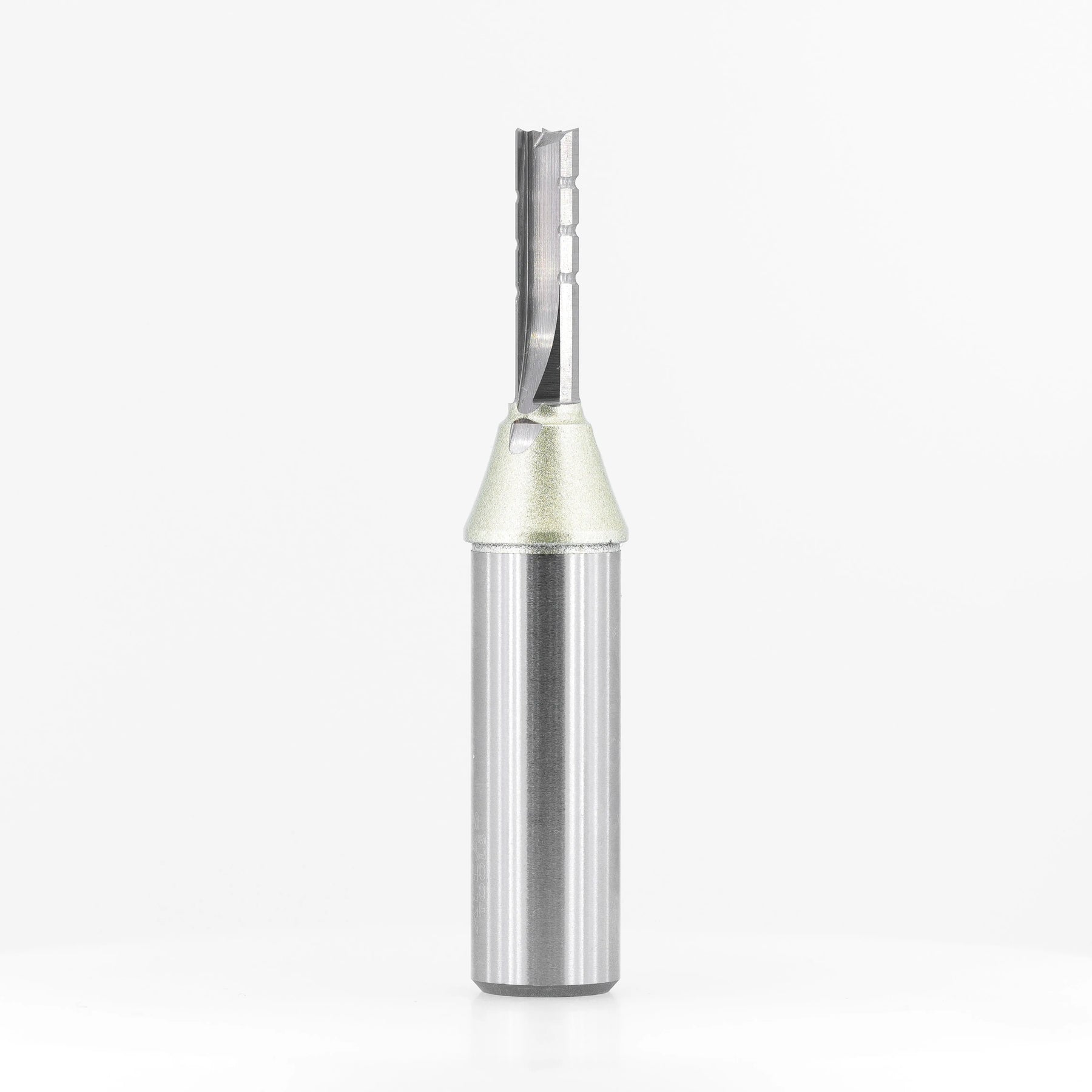

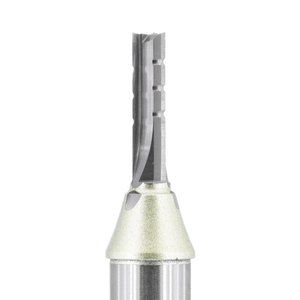

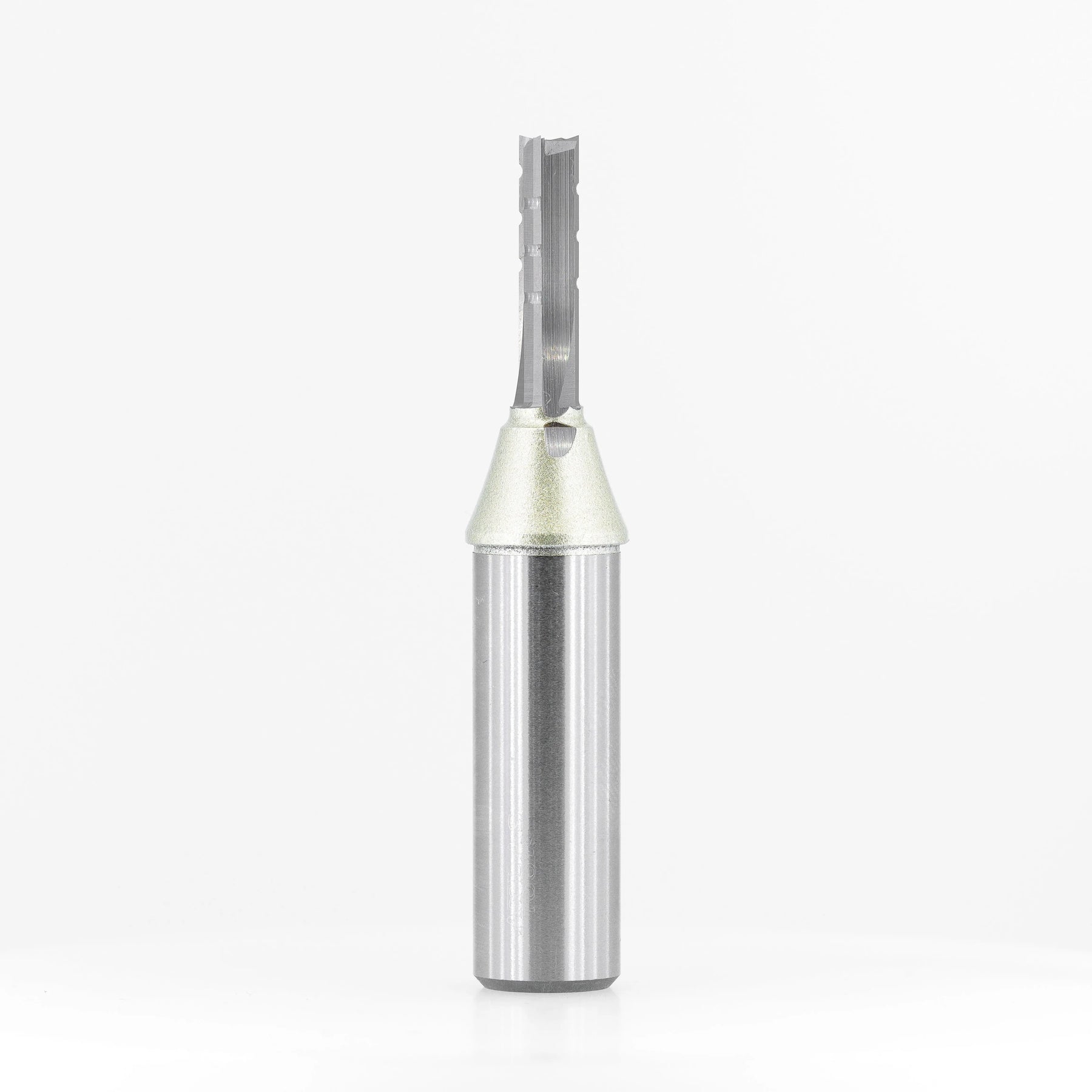

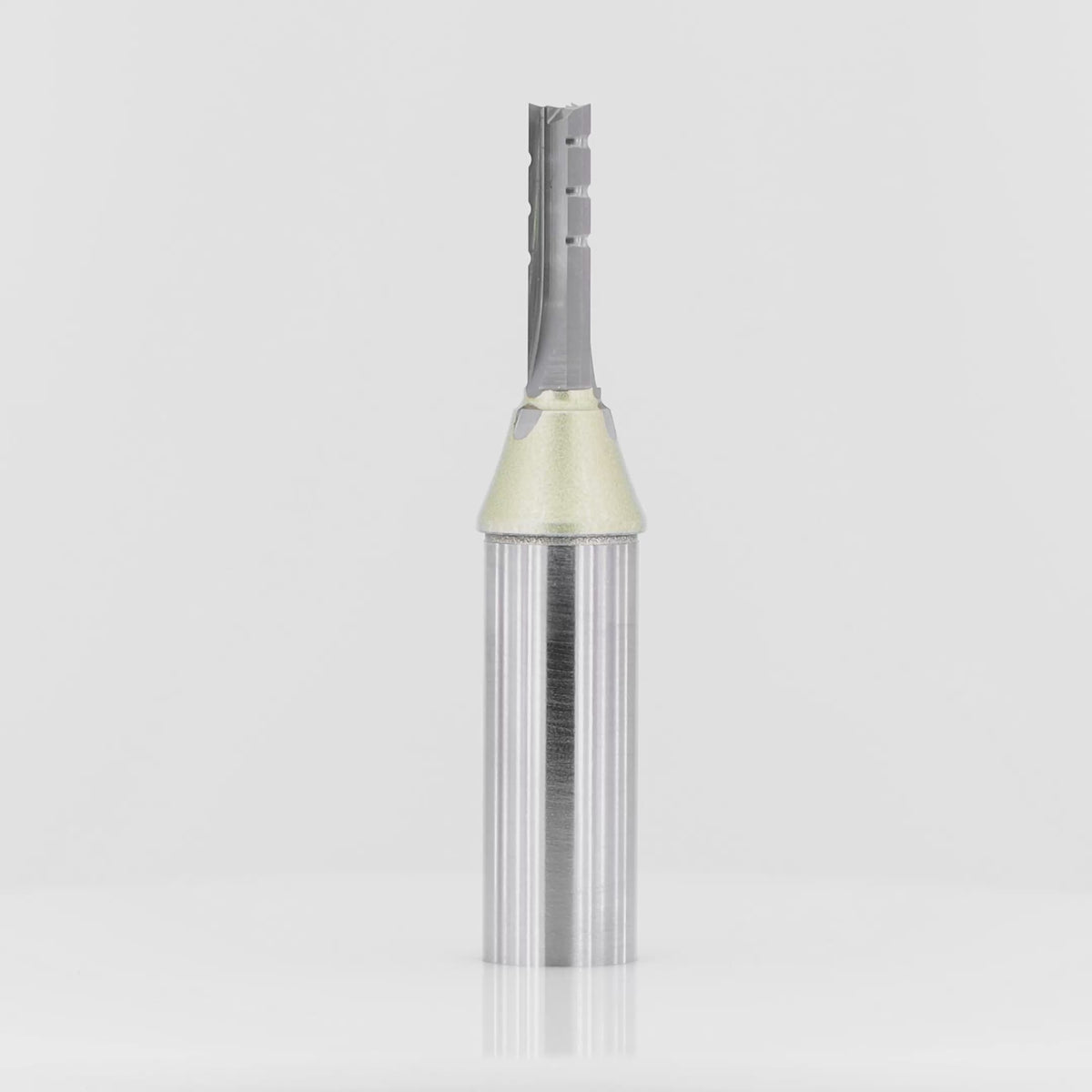

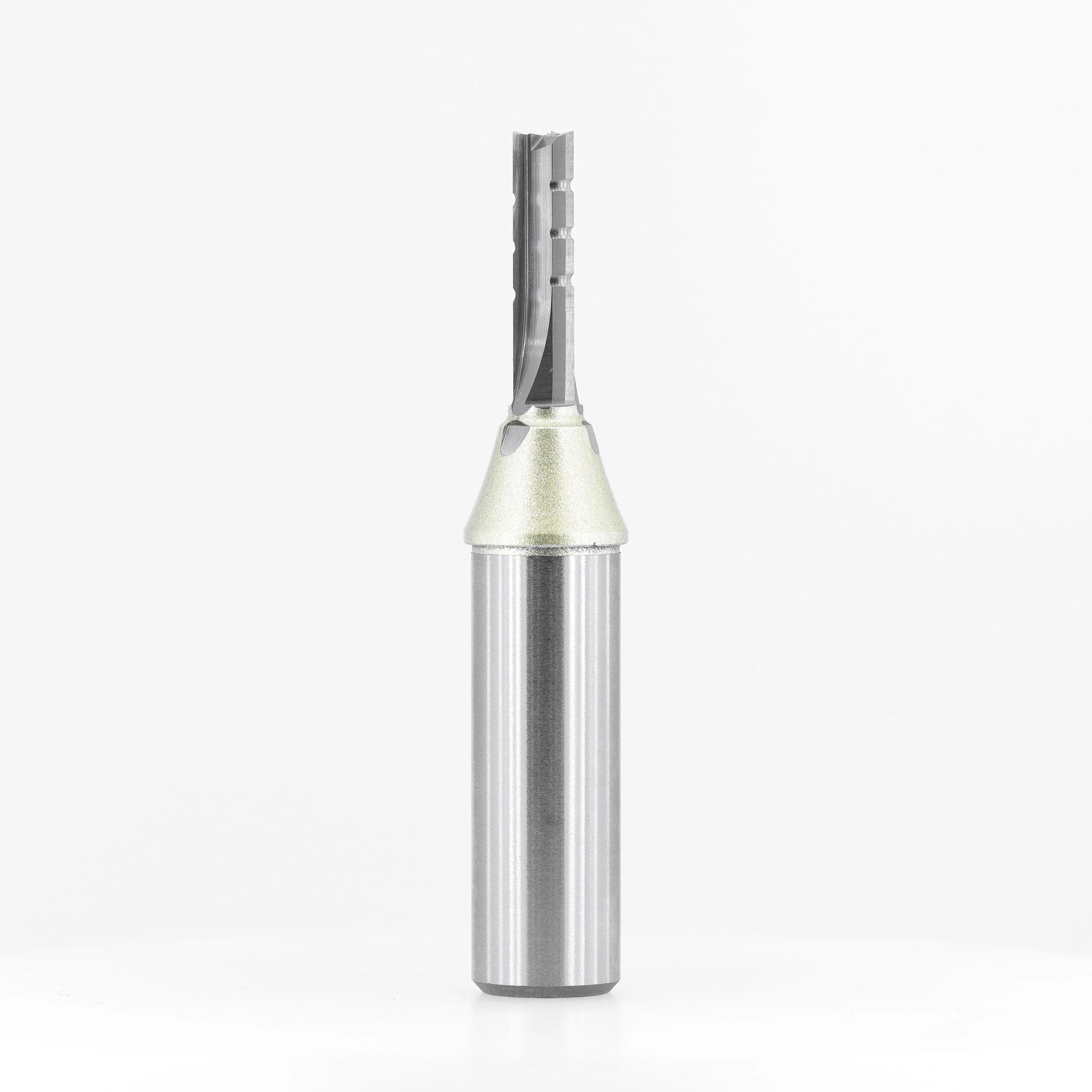

TCT Chip Breaker Router Bit - 6x22

Built for clean cutting, reliable tool life and professional results.

$75.00 +GST

Standard Shipping Australia-wide just $12 at checkout

Secure checkout 256-bit SSL encrypted

Large Stocks No delays

Expert support Real advice

Specifications

Precision cutting. Clean results.

The TCT Chip Breaker Bit uses serrated chipbreaker flutes to fracture long chips into smaller pieces for better chip control and lower cutting resistance. With a cutting diameter/length of 6×22mm, it’s purpose-built for aggressive roughing, slotting and pocketing in hardwoods, plywood and composites.

Key benefits

Serrated chipbreaker flutes fracture chips to prevent long-stringy swarf and clogging.

Reduced cutting resistance lowers heat build-up and helps push higher feed rates.

Tungsten carbide tips on a sturdy steel body withstand high cutting forces and stay sharp longer.

Excels in hardwoods, plywood and non-abrasive composites for heavy stock removal.

Spec	Result
Diameter	6mm
Cut Length	22mm
Shank (Collet Size)	12mm
Overall Length	50mm
Flutes	3
Coating	None
Chip Breaker Flutes	Yes

Performance highlights

Breaking chips into smaller fragments reduces heat build-up and helps delay tool wear during aggressive cuts. While primarily a roughing tool, it can still deliver surprisingly good wall finishes and works well for slotting and profile cuts where chip evacuation and vibration control matter.

Why Atlas?

Longer tool life Built for durability and wear resistance.

Cleaner cut edges Engineered for best quality.

Best Carbide Better Results

Numerous Coatings Reduces friction, heat and promotes long tool life.

CNC Tool Holders

VIEW RANGE

This tool is recommended for the following materials.

Particleboard

Wood

Hardwood

Plywood

Likelyhood is that this is either due to incorrect speed/feed rates, the wrong diameter (size) being used, or too much material being removed in one pass.
Suggested fixes include: upgrading to a larger diameter tool, checking the material compatability and speed/feed recommendation on our product's page, or consulting our team on better recommendations.

How do I get the best tool Life?

Clean off any aluminium or plastic swarf that may be stuck to the tool, and wipe down with Isopropyl Alcohol, or Methylated Spirits.
Additionally, in running carbide tools, make sure that workholding is rigid and loose parts are secured during cutting to prevent vibration and premature tool snapping or chipping.
Ensure tool paths include lead-ins, and that tool stick-out is a minimal as possible.
Make sure you are using premium good-quality collets and tool holders with high-accuracy

How fast are orders dispatched?

Same day if before 11am, otherwise the next morning.
If your order is urgent, please add notes in the order and the team may be able to fast-track dispatch.

What if I ordered the wrong bit?

If you wish to return, please see our return policy in the footer. There is a 15% restocking fee and freight is the customers responsibility.

Can I get technical advice before ordering?

Absolutely. Please feel free to call the team, who are more than happy to help, give guidance and point you in the right direction for your requirements.

Do we offer trade pricing or bulk discounts?

Yes. Please contact the team first before ordering. We will assess the quantity and may provide bulk discounts via a coupon or setting you up with an account.

Can I use CNC router bits in a handheld router?

Yes, absolutely. You may be more prone to backlash and chatter without a rigid setup.

How do I get the best edge quality?

Sharp new tools always leave the best edge finish; therefore it is advantageous to use a roughing tool, and a new clean finishing tool for the last pass
