Atlas Tools

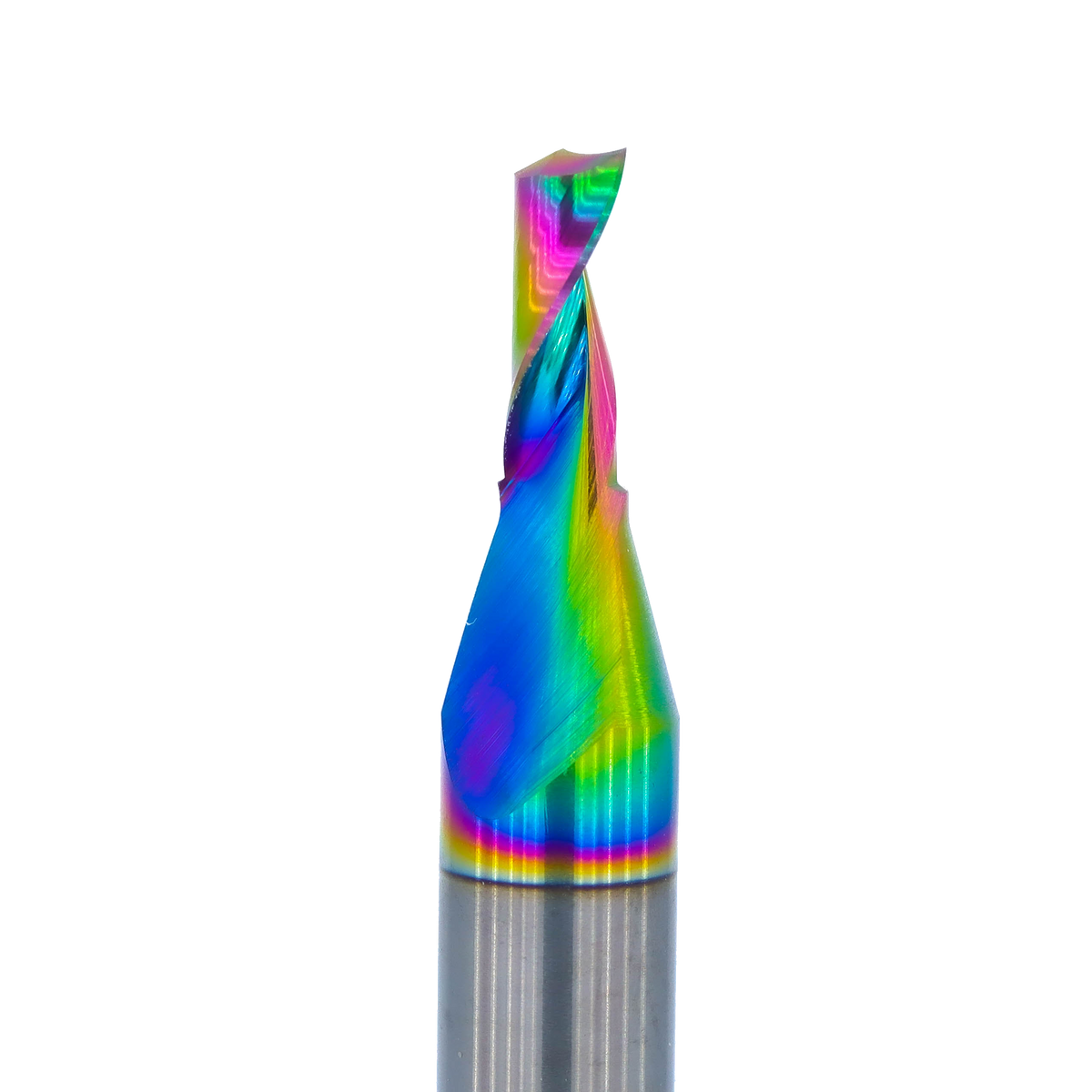

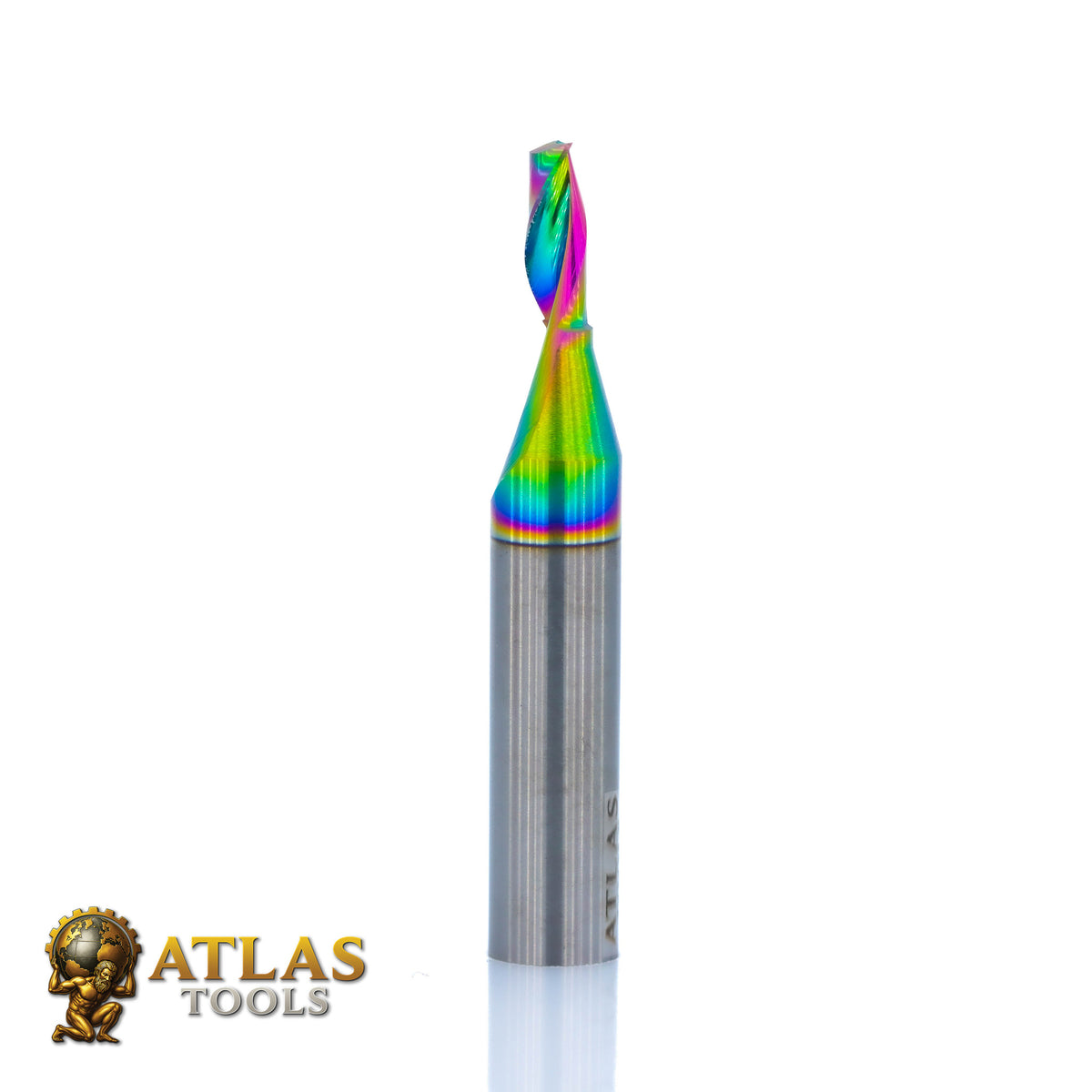

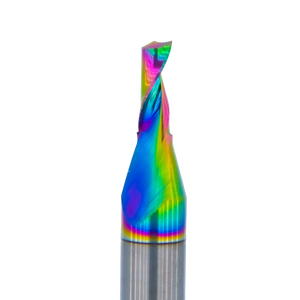

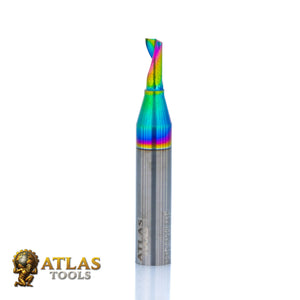

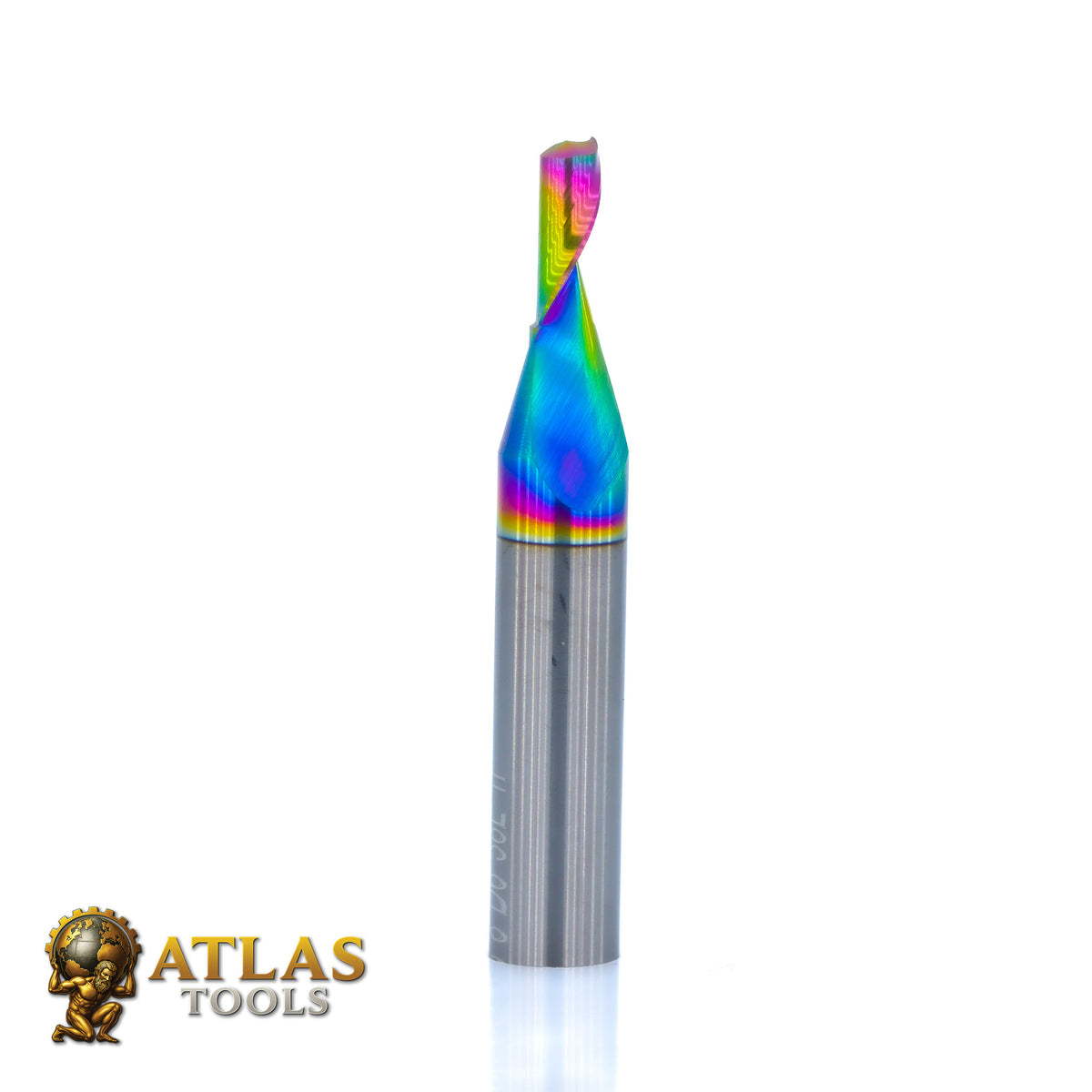

Up-Spiral Aluminium Router Bit - 3x8 6D (DLC Coating)

Built for clean cutting, reliable tool life and professional results.
$95.00 +GST
Standard Shipping Australia-wide just $12 at checkout
Secure checkout 256-bit SSL encrypted
Large Stocks No delays
Expert support Real advice

Specifications

Precision cutting. Clean results.

Designed for non-ferrous metals, this 3mm aluminium up-spiral router bit uses a single-flute up-cut design to clear chips efficiently. The 6mm shank and compact cutting geometry suit detailed aluminium profiles, slots and pockets. Its DLC coating helps resist chip adhesion during machining.
Key benefits
Fast chip evacuation The up-cut flute carries chips out of the cut to help keep the cutting area clear.
Aluminium-focused design Compact 3 mm cutter suited to aluminium sheet, profiles and pockets.
Single-flute geometry Provides generous chip space on this small-diameter cutter.
DLC coating Adds a hard, wear-resistant surface to support consistent performance.
Spec Result
Diameter 3mm
Cut Length 8mm
Shank (Collet Size) 6mm
Overall Length 38mm
Flutes 1
Carbide Grade K180
Coating DLC (Diamond-Like Carbon)
Tool Type Up-spiral end mill
Best Suited For Aluminium, copper and brass
Clean cuts in aluminium
Designed for CNC routing aluminium sheet, profiles and pockets. The up-cut flute clears chips from the cut to support clean edges and stable machining. Suitable feeds, speeds, extraction and workholding help deliver consistent results.

Why Atlas?

Longer tool life Built for durability and wear resistance.
Cleaner cut edges Engineered for best quality.
Best Carbide Better Results
Numerous Coatings Reduces friction, heat and promotes long tool life.

SUITABLE MATERIALS

This tool is recommended for the following materials.

NEED HELP?

Speak with the Atlas Tools team with any questions.

TALK TO OUR TEAM

Contact us for product advice, trade support and quick recommendations.

Trade specialists Real advice from real people
Trade specialists Real advice from real people
Quick recommendations Get the right bit, fast
Support when you need it Before, during and after the sale

You May Also Like

Frequently Asked Questions

Collapsible content

Why Trust our Tools

We use the very same tools we sell in our own CNC and Trade work, and have been for years. And trust, we have used and been frustrated with expensive sub-par tooling in the market like you have; and we want you to experience what its like to use amazing tools.

What if my Tool prematurely Snaps?

Likelyhood is that this is either due to incorrect speed/feed rates, the wrong diameter (size) being used, or too much material being removed in one pass.
Suggested fixes include: upgrading to a larger diameter tool, checking the material compatability and speed/feed recommendation on our product's page, or consulting our team on better recommendations.

How do I get the best tool Life?

Clean off any aluminium or plastic swarf that may be stuck to the tool, and wipe down with Isopropyl Alcohol, or Methylated Spirits.
Additionally, in running carbide tools, make sure that workholding is rigid and loose parts are secured during cutting to prevent vibration and premature tool snapping or chipping.
Ensure tool paths include lead-ins, and that tool stick-out is a minimal as possible.
Make sure you are using premium good-quality collets and tool holders with high-accuracy

How fast are orders dispatched?

Same day if before 11am, otherwise the next morning.
If your order is urgent, please add notes in the order and the team may be able to fast-track dispatch.

What if I ordered the wrong bit?

If you wish to return, please see our return policy in the footer. There is a 15% restocking fee and freight is the customers responsibility.

Can I get technical advice before ordering?

Absolutely. Please feel free to call the team, who are more than happy to help, give guidance and point you in the right direction for your requirements.

Do we offer trade pricing or bulk discounts?

Yes. Please contact the team first before ordering. We will assess the quantity and may provide bulk discounts via a coupon or setting you up with an account.

Can I use CNC router bits in a handheld router?

Yes, absolutely. You may be more prone to backlash and chatter without a rigid setup.

How do I get the best edge quality?

Sharp new tools always leave the best edge finish; therefore it is advantageous to use a roughing tool, and a new clean finishing tool for the last pass
