Atlas Tools

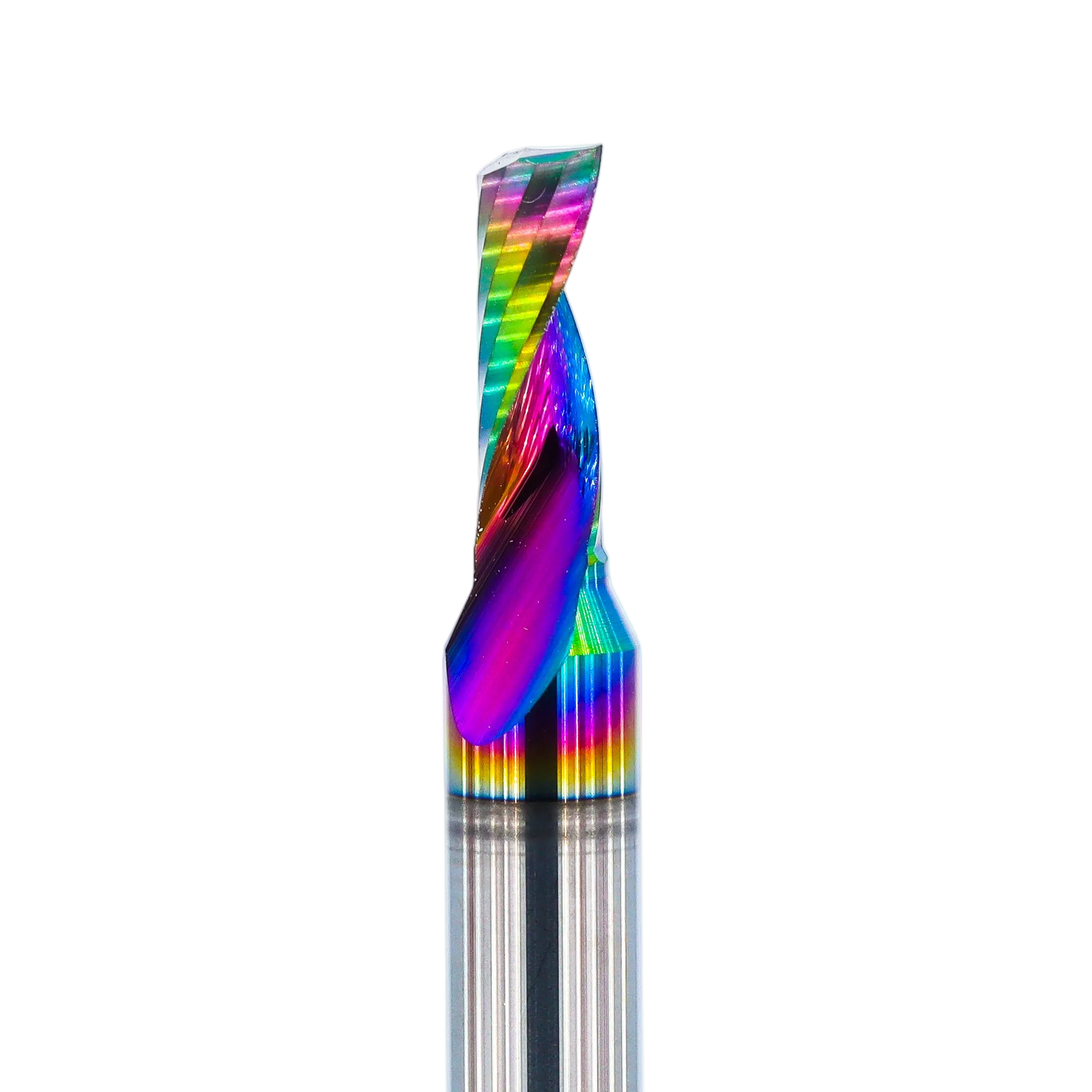

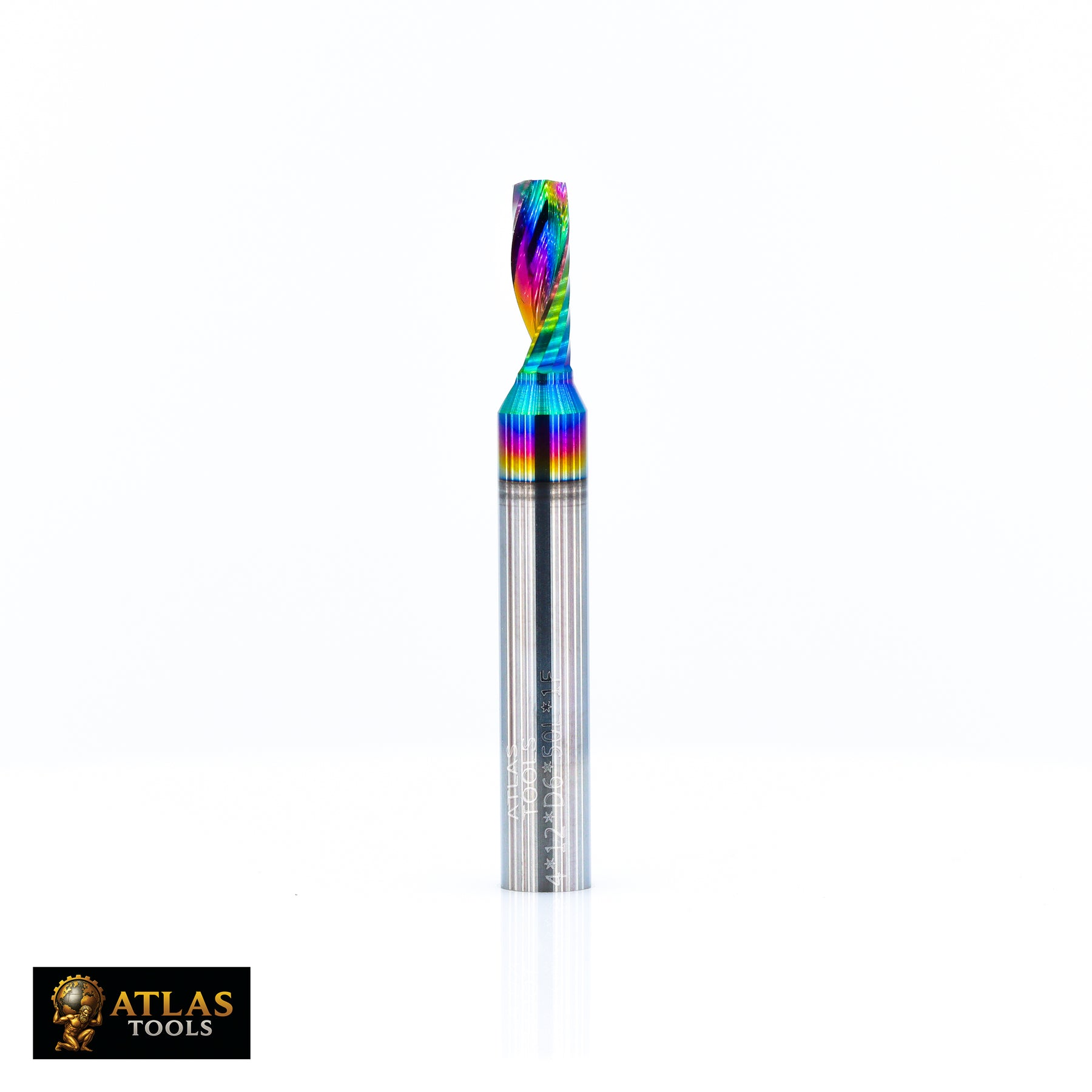

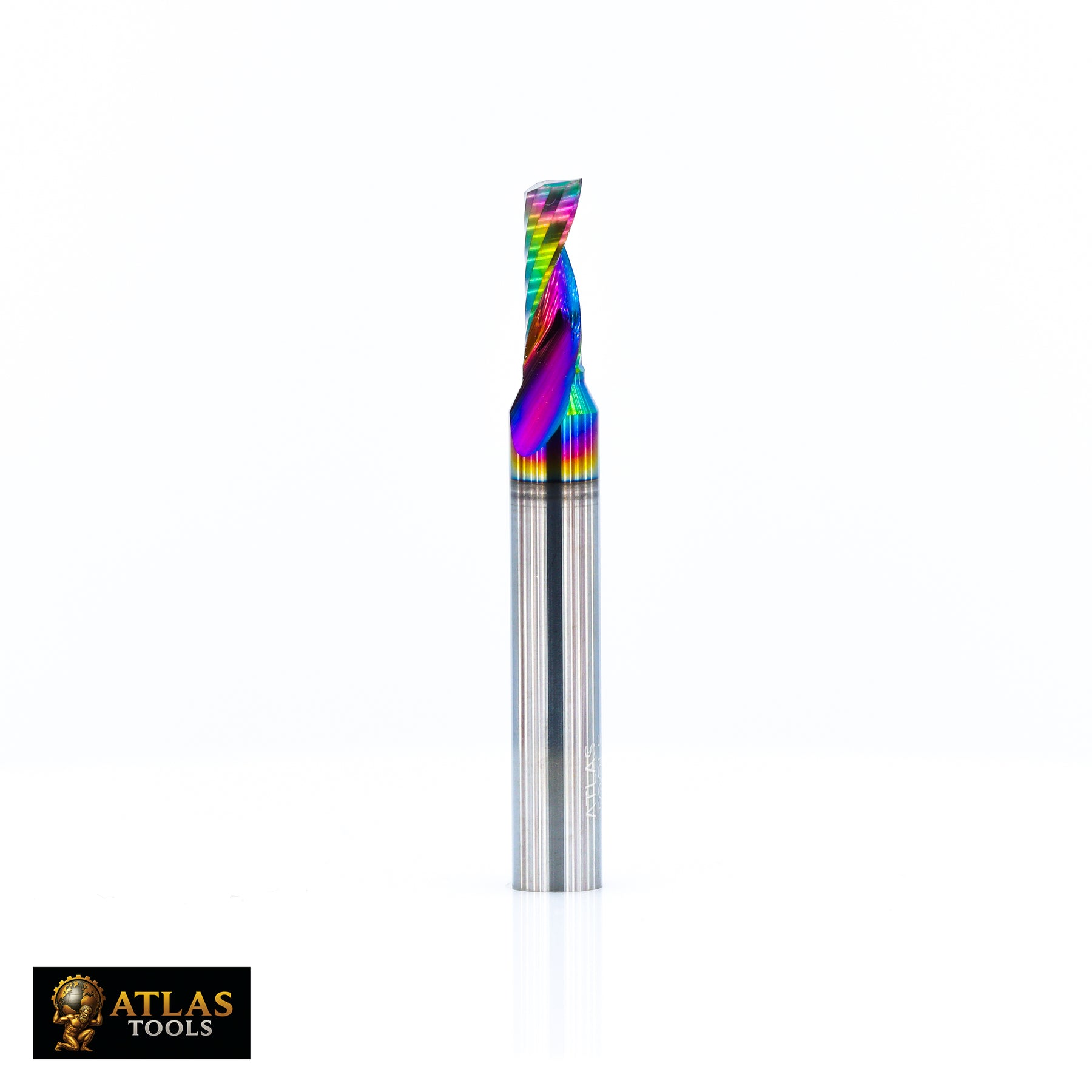

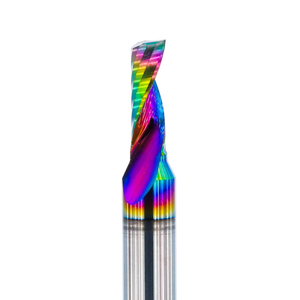

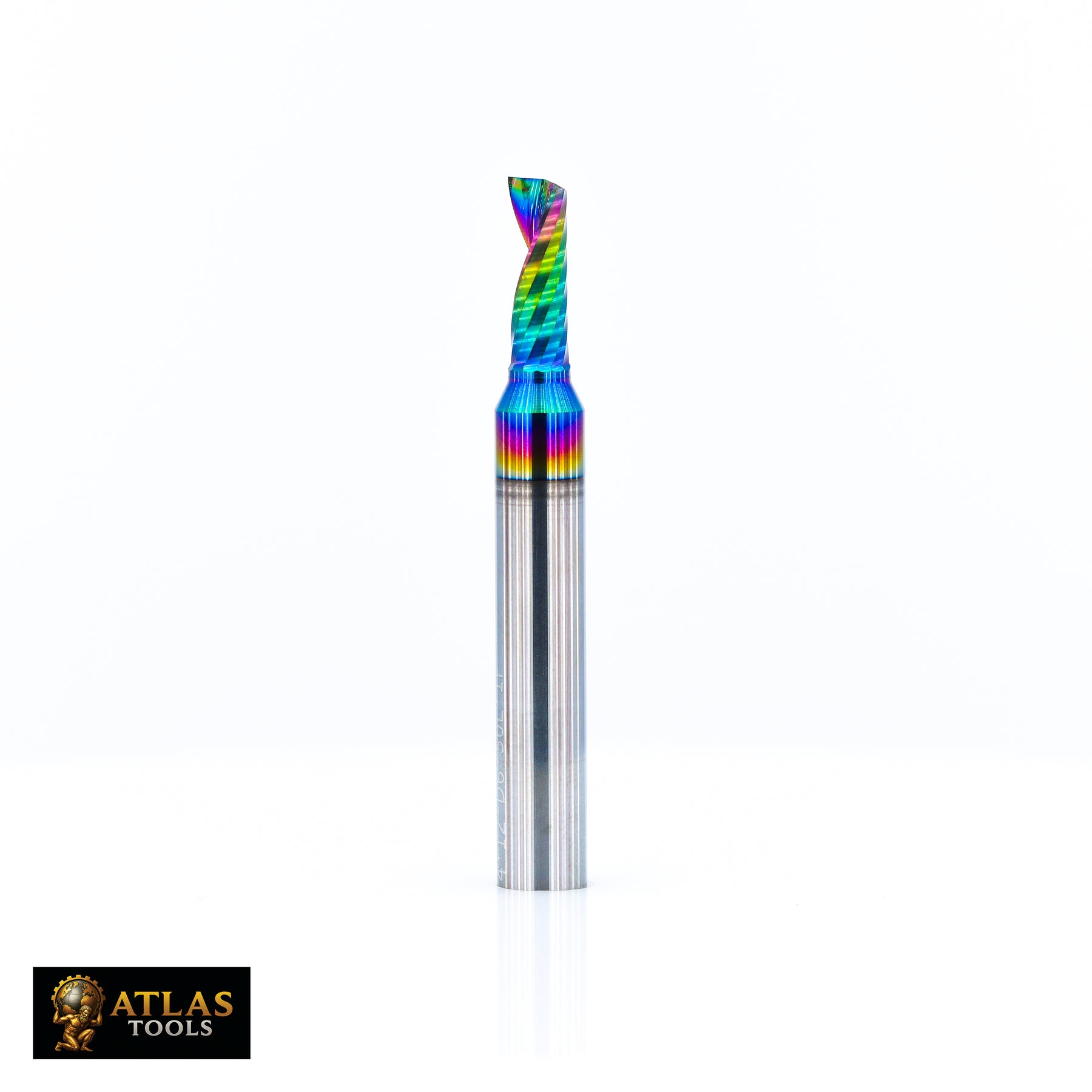

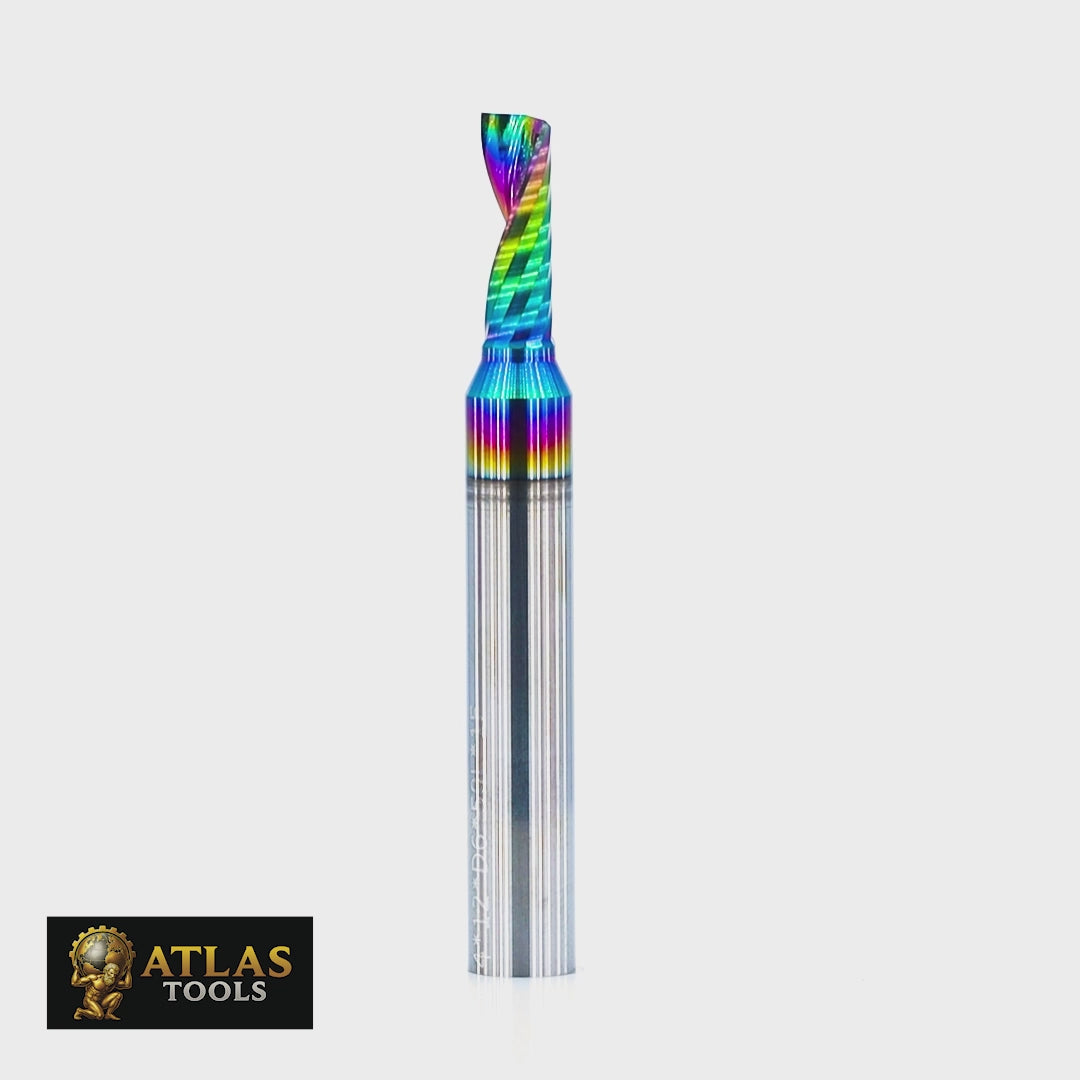

Up-Spiral Plastic Router Bit - 4x12 6D (DLC Coating)
Built for clean cutting, reliable tool life and professional results.
$99.00
+GST
Sale
RRP
Standard Shipping Australia-wide just $12 at checkout
Secure checkout
256-bit SSL encrypted
Large Stocks
No delays
Expert support
Real advice
Specifications
Precision cutting. Clean results.
Purpose-built for clean plastic machining, this Plastic Up Spiral Router Bit is optimised for acrylic, PVC, polycarbonate and HDPE. The single-flute up-cut geometry and generous flute volume evacuate chips quickly to reduce heat build-up that can cause melting, gumming, or edge chipping. With a cutting size of 4mm × 12mm, it’s a solid all-rounder for sheet work, profiles, and pockets.
Key benefits
Fast chip evacuation keeps the cut cool—less melting, less gumming, cleaner edges.
Mirror-polished cutting edge reduces chip re-welding and improves surface finish.
Polished flute helps dissipate heat quickly—better tool life and more consistent results.
Optimised for acrylic sheets, PVC foam board, polycarbonate and HDPE (also suitable for thin ACM work).
High-quality carbide for rigidity and accuracy—less deflection, better edge control.
| Spec | Result |
|---|---|
| Diameter | 4mm |
| Cut Length | 12mm |
| Shank (Collet Size) | 6mm |
| Overall Length | 50mm |
| Flutes | 1 |
| Coating | DLC (Diamond-Like-Carbon) |
Polished flute for smooth, melt-free cutting
The mirror-like polish improves chip flow and reduces heat, helping prevent edge whitening, chipping, and re-welding. The result is a cleaner cut surface and better edge clarity on plastics.
Better heat control means fewer melted chips, less edge tear-out, and more consistent results on long nested jobs.
Applications and benefits
Ideal for sign makers, fabricators and CNC users cutting acrylic sheet, PVC foam board and general plastics. The generous flute capacity supports higher feed rates while helping keep the workpiece cool. Also suitable for thin aluminium composite panels (ACM) when clean evacuation is required.
Why Atlas?
Longer tool life
Built for durability and wear resistance.
Cleaner cut edges
Engineered for best quality.
Best Carbide
Better Results
Numerous Coatings
Reduces friction, heat and promotes long tool life.
