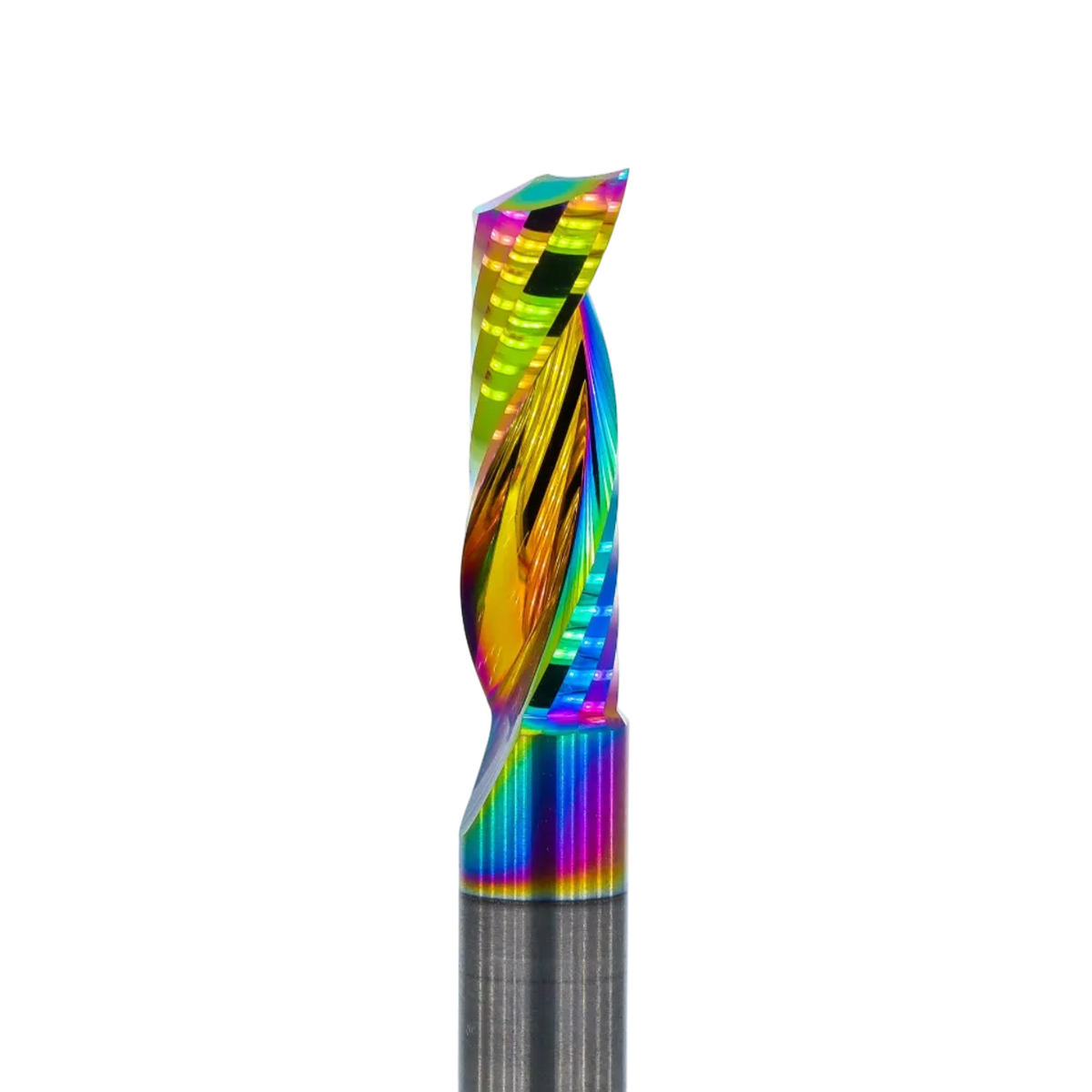

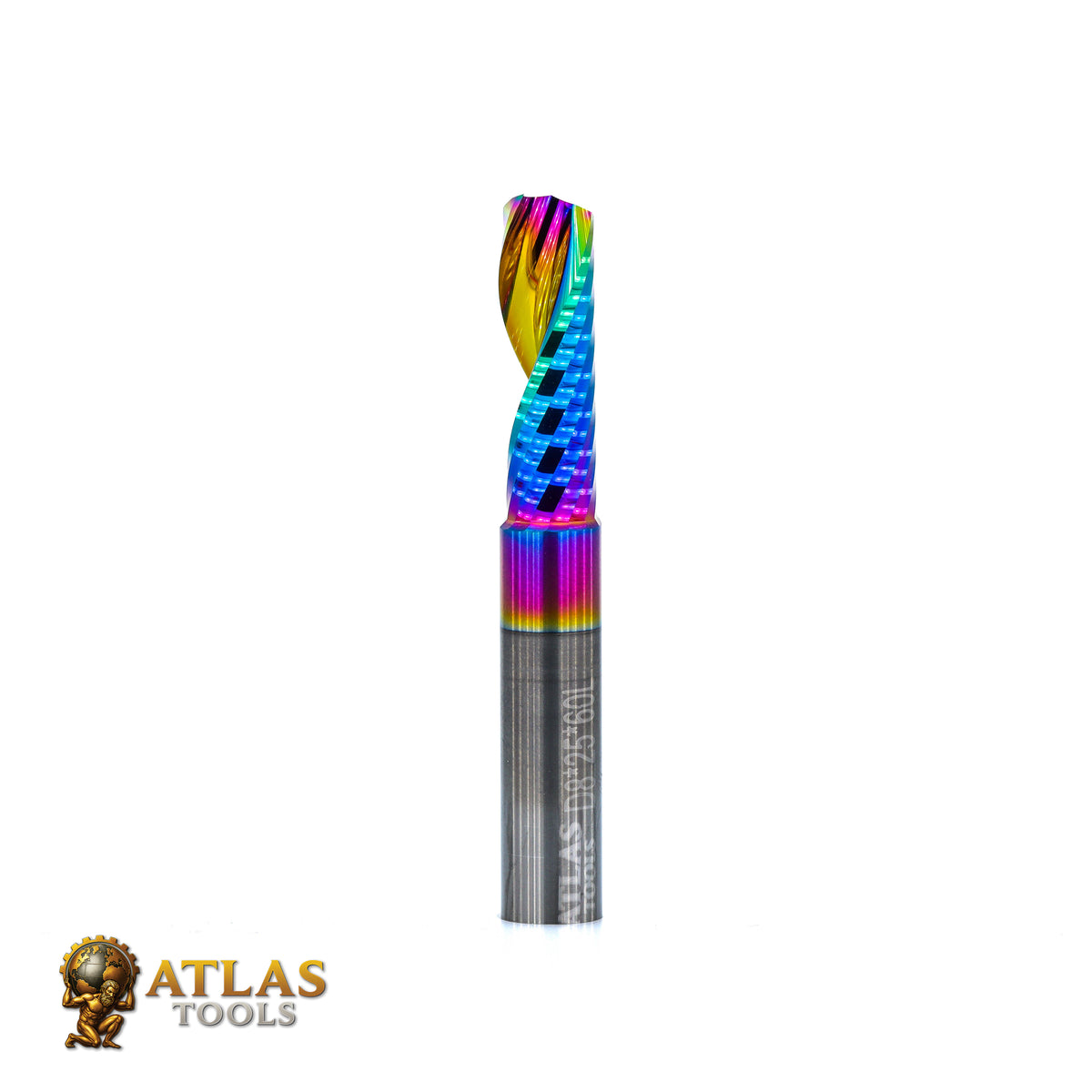

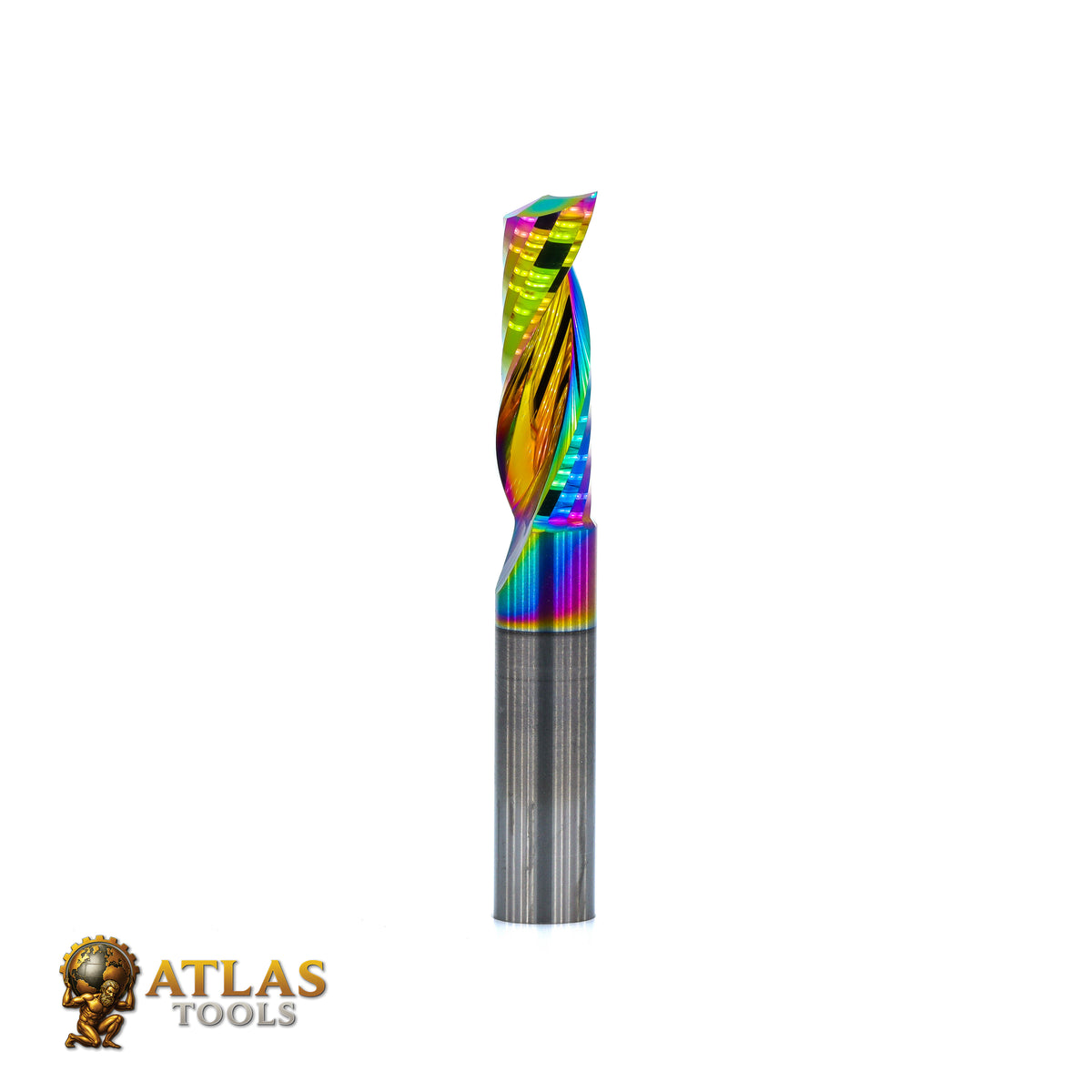

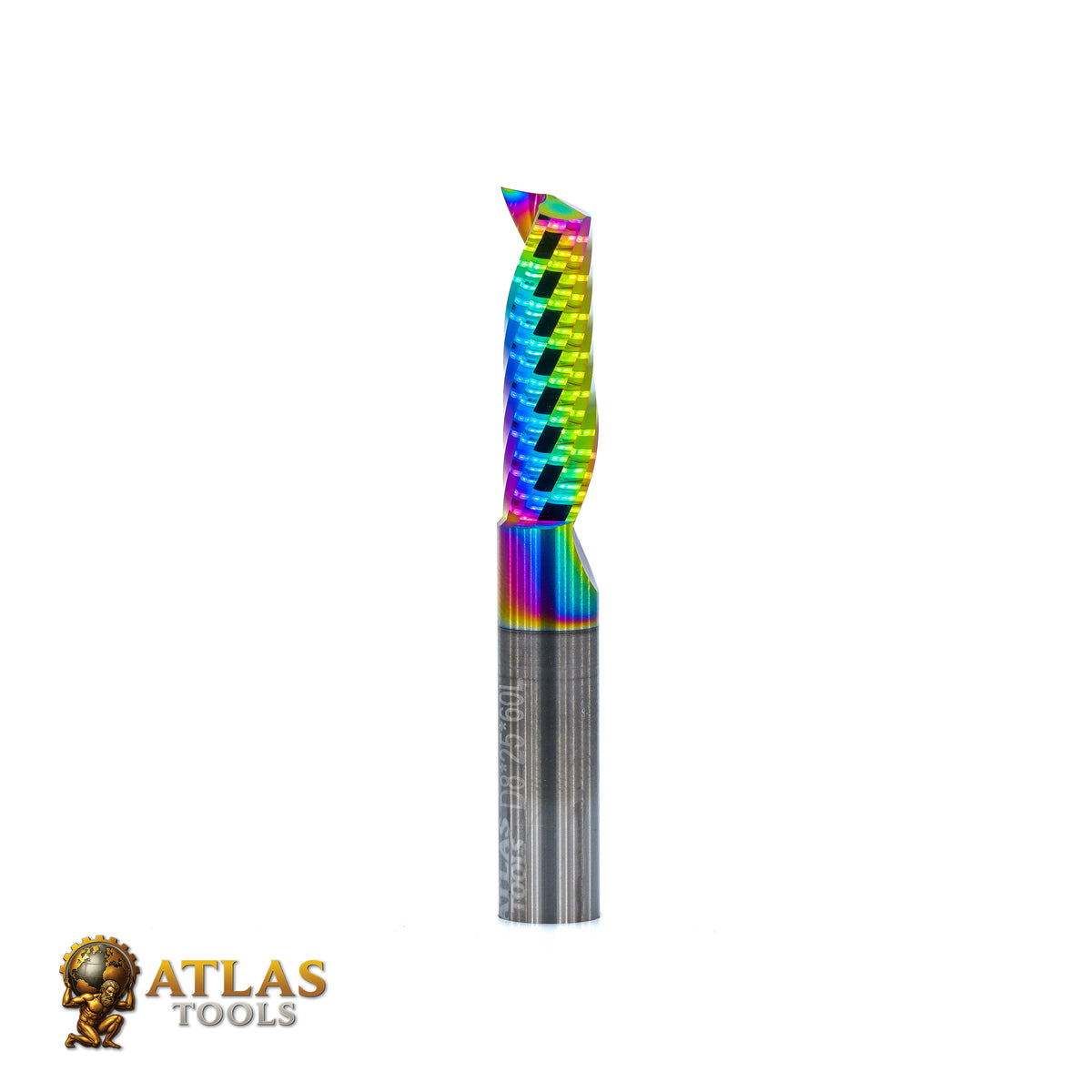

Up-Spiral Plastic Router Bit - 8x25 ULTRAPOLISH (DLC Coating)
Built for clean cutting, reliable tool life and professional results.
$180.00
+GST
Sale
RRP
Standard Shipping Australia-wide just $12 at checkout
Secure checkout
256-bit SSL encrypted
Large Stocks
No delays
Expert support
Real advice
Specifications
Precision cutting. Clean results.
Purpose-built for clean plastic machining, this 8mm × 25mm Up Spiral Router Bit is designed for acrylic, PVC, polycarbonate and HDPE. The single-flute up-cut geometry and generous flute volume evacuate chips quickly to reduce heat build-up that can cause melting, gumming, or edge chipping. With a cutting size of 8mm × 25mm, it’s a solid all-rounder for sheet work, profiles, and pockets.
Key benefits
Fast chip evacuation keeps the cut cool—less melting, less gumming, cleaner edges.
ULTRAPOLISHED relief surfaces reduce friction and heat for a superior finish and longer tool life.
ULTRAPOLISHED relief surfaces
Both the internal and external relief surfaces are polished to reduce friction, help produce a superior finish, and extend tool life.
Both the internal and external relief surfaces are polished to reduce friction, help produce a superior finish, and extend tool life.
The ULTRAPOLISHED internal and external relief surfaces reduce friction and heat, supporting longer tool life and consistent results.
Optimised for acrylic sheets, PVC foam board, polycarbonate and HDPE (also suitable for thin ACM work).
High-quality carbide for rigidity and accuracy—less deflection, better edge control.
| Spec | Result |
|---|---|
| Diameter | 8mm |
| Cut Length | 25mm |
| Shank (Collet Size) | 8mm |
| Overall Length | 60mm |
| Flutes | 1 |
| Coating | DLC (Diamond-Like-Carbon) |
| Surface Finish | ULTRAPOLISHED internal and external relief surfaces |
ULTRAPOLISHED internal and external relief surfaces
Both the internal and external relief surfaces are ULTRAPOLISHED to reduce friction where the tool meets the material. This helps reduce heat, deliver a superior surface finish, and extend tool life.
Reduced friction helps control heat and supports cleaner cuts and more consistent results over longer jobs.
Applications and benefits
Ideal for sign makers, fabricators and CNC users cutting acrylic, PVC, polycarbonate, HDPE and other plastics. The up-spiral geometry supports efficient chip evacuation. Also suitable for thin aluminium composite panels (ACM) when clean evacuation is required.
Why Atlas?
Longer tool life
Built for durability and wear resistance.
Cleaner cut edges
Engineered for best quality.
Best Carbide
Better Results
Numerous Coatings
Reduces friction, heat and promotes long tool life.
