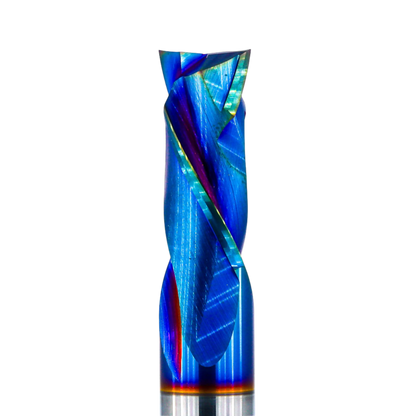

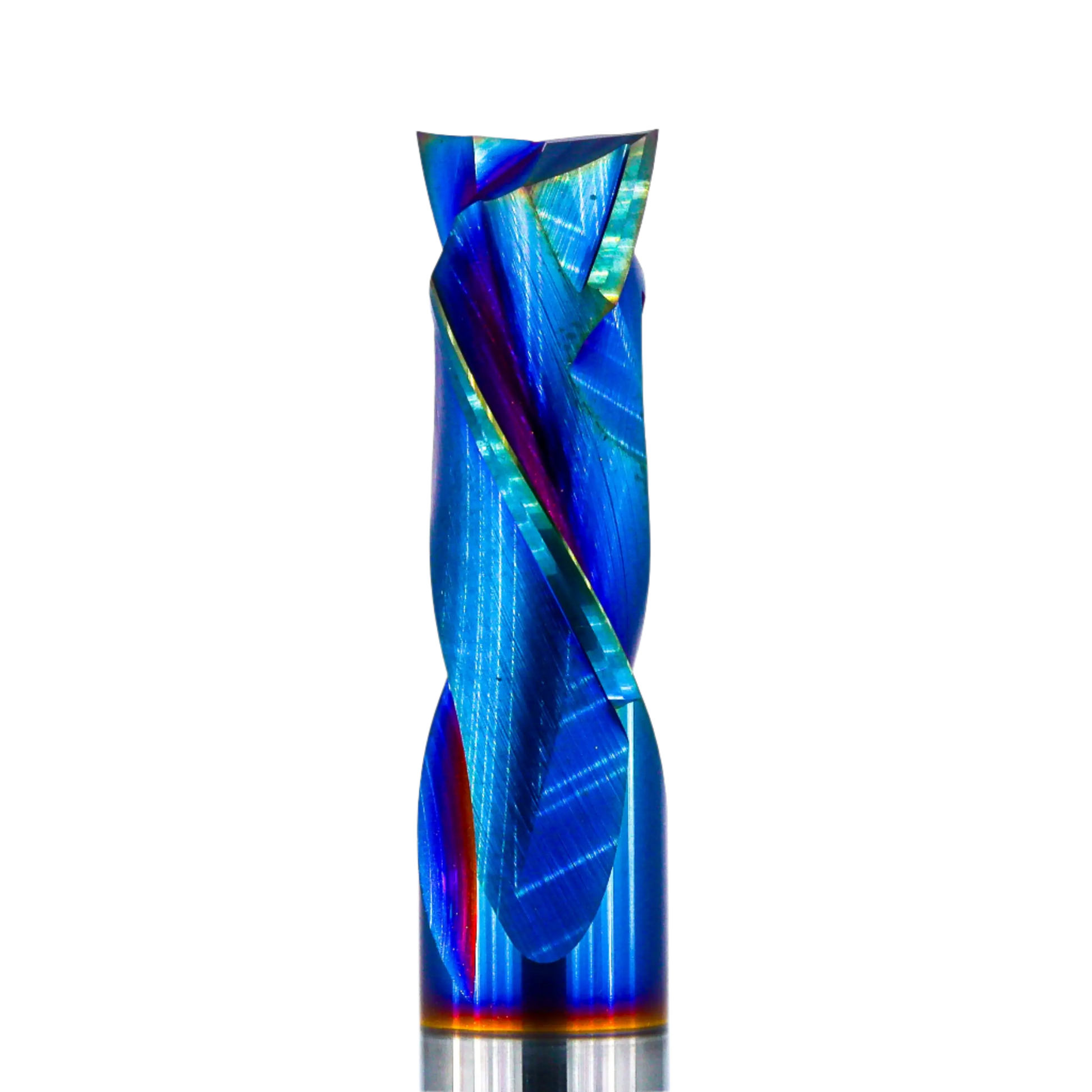

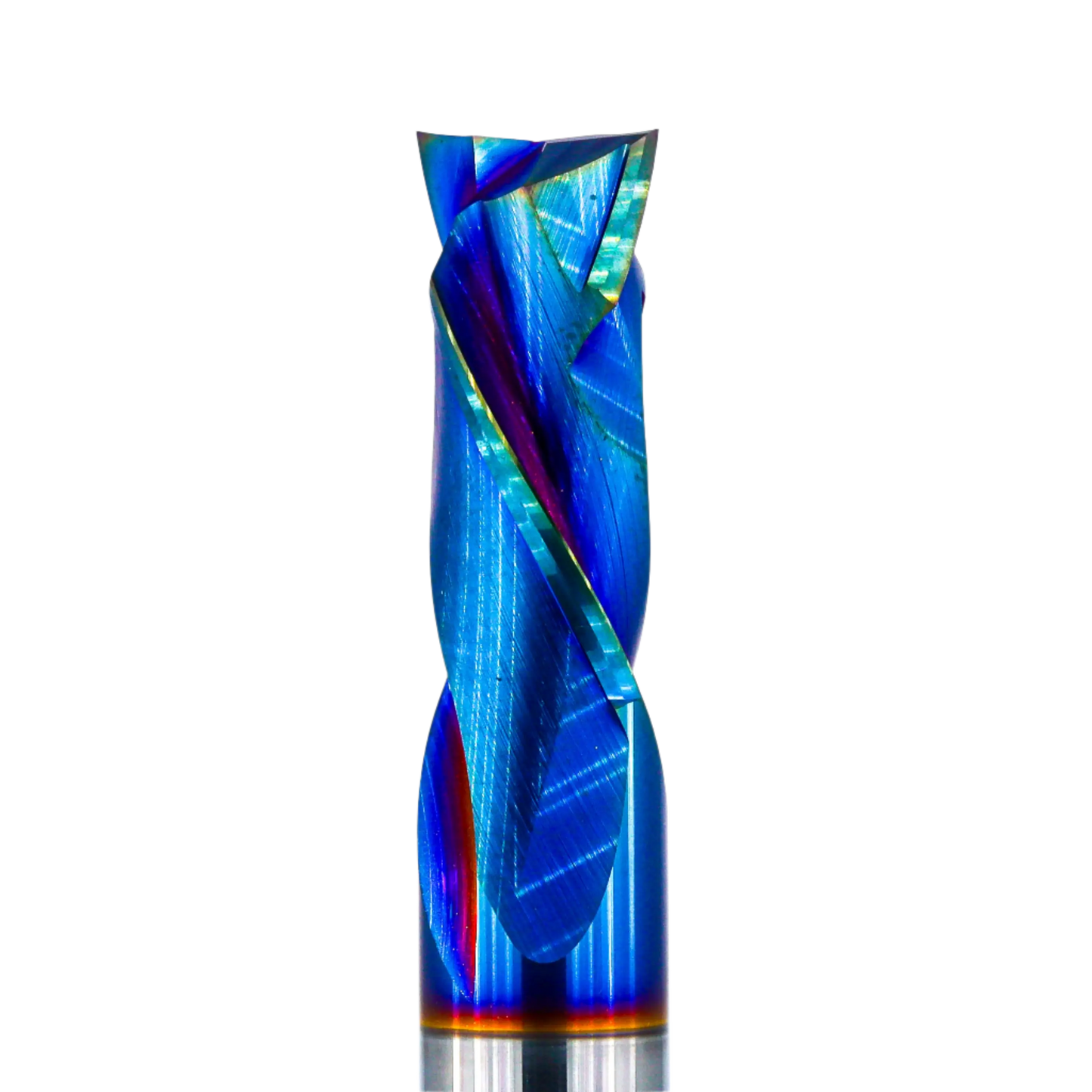

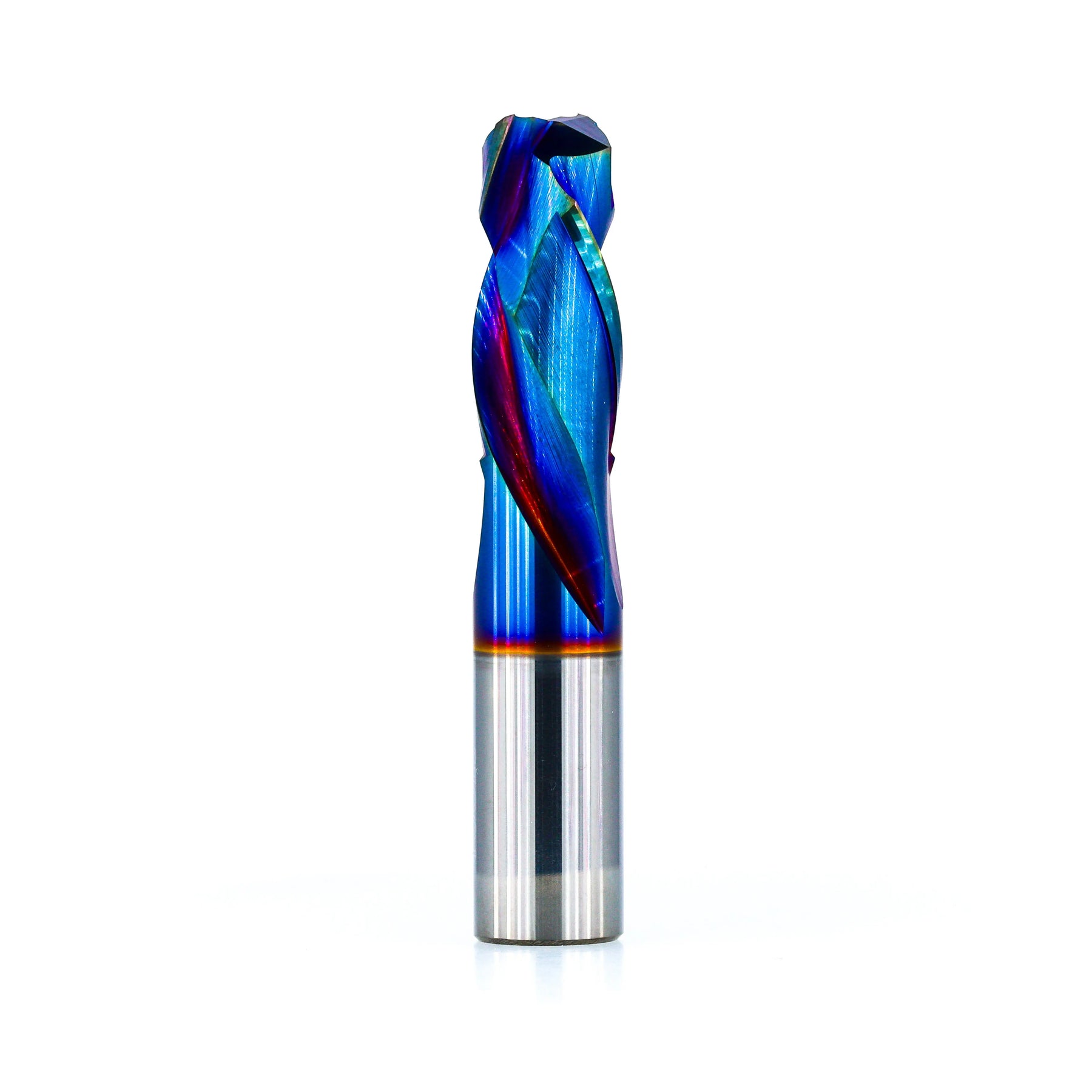

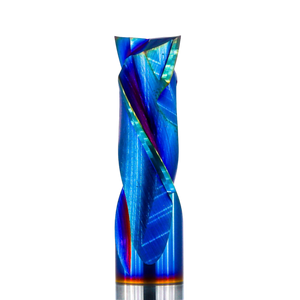

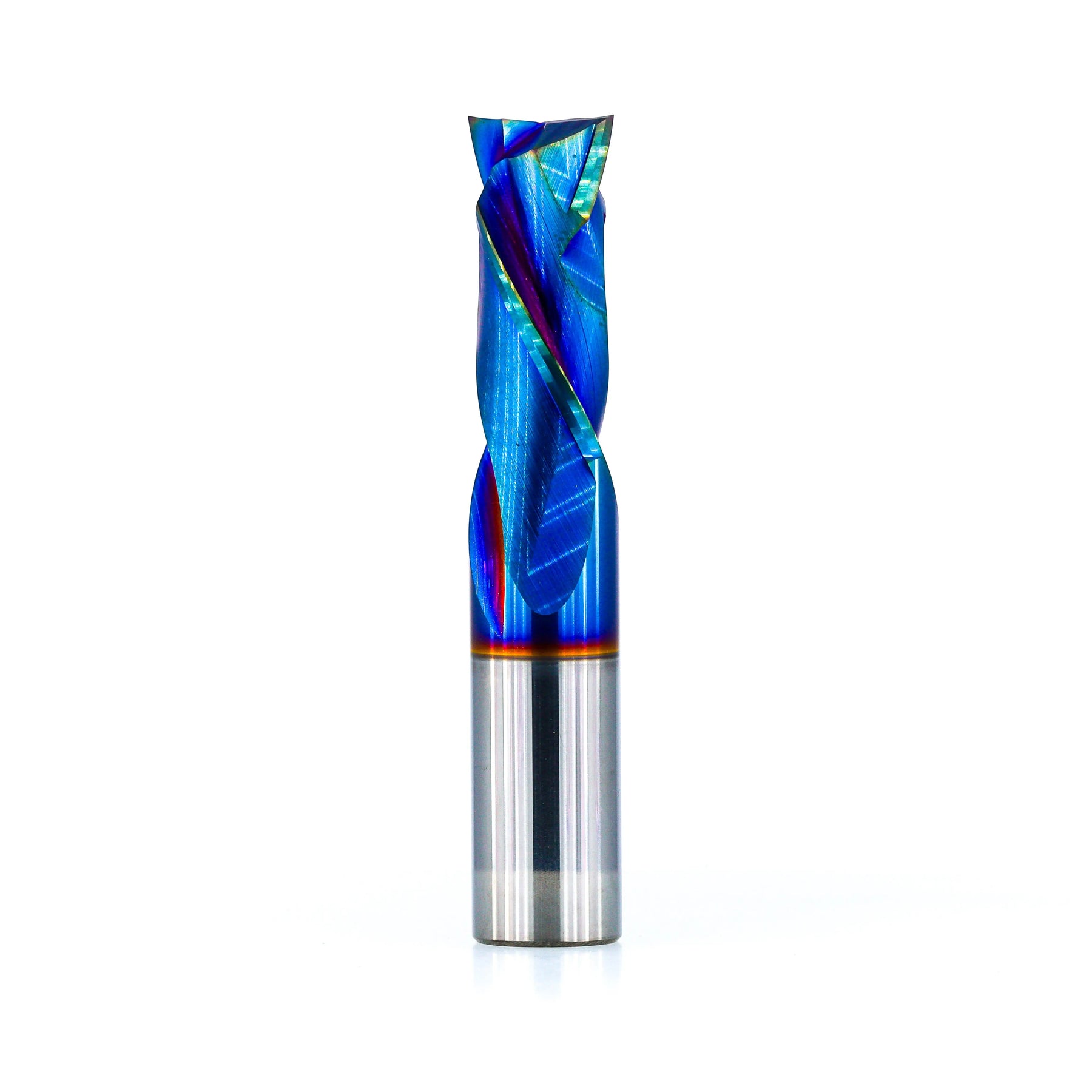

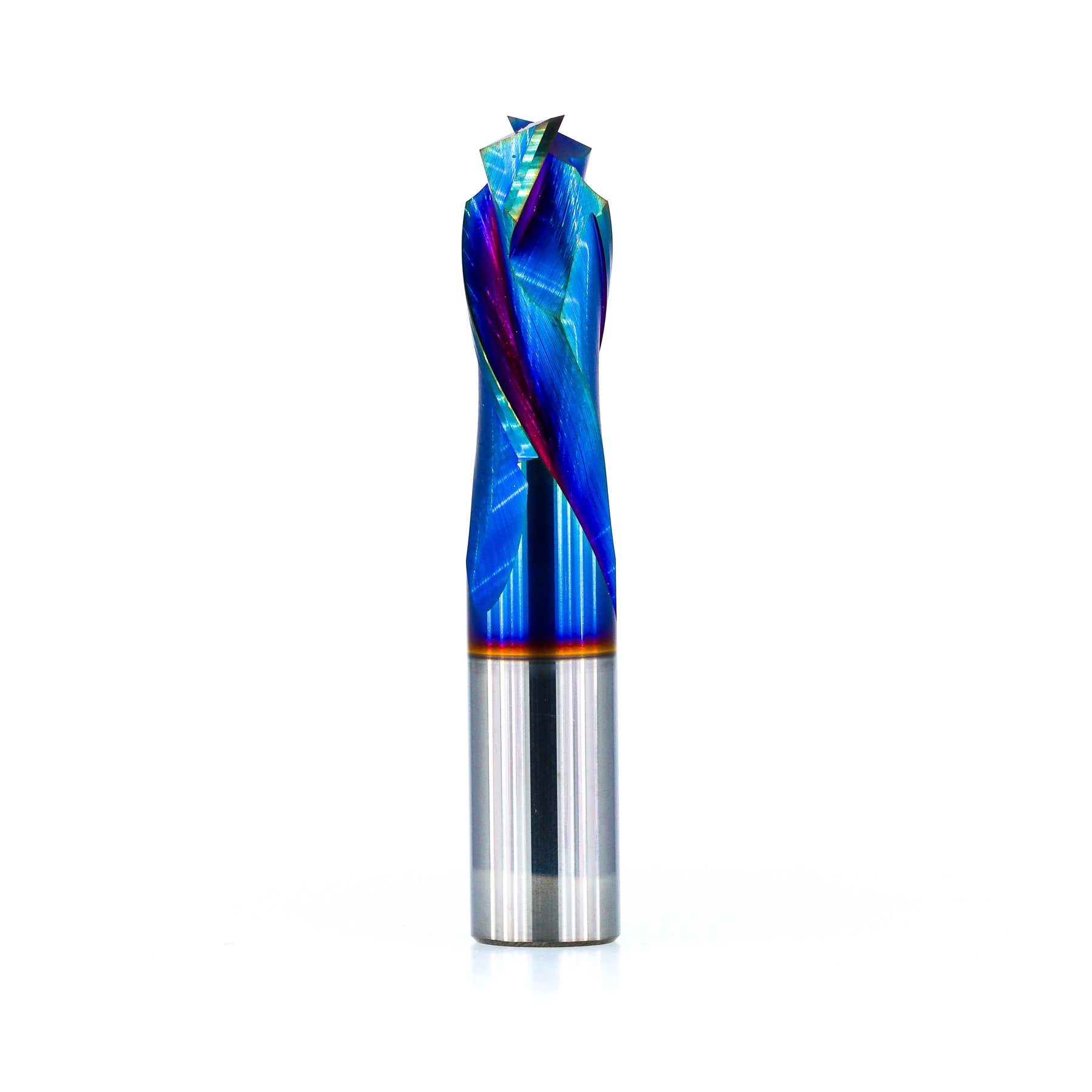

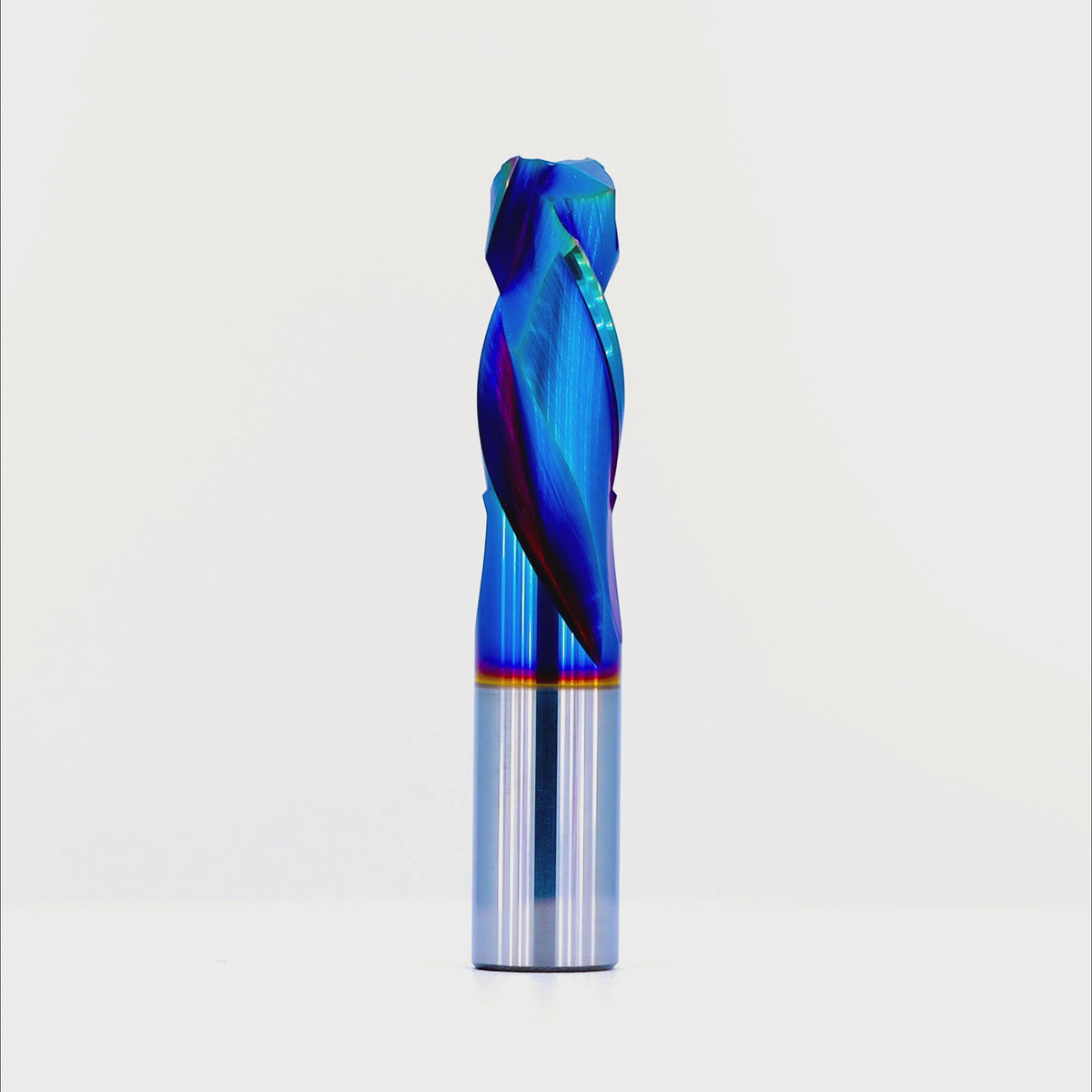

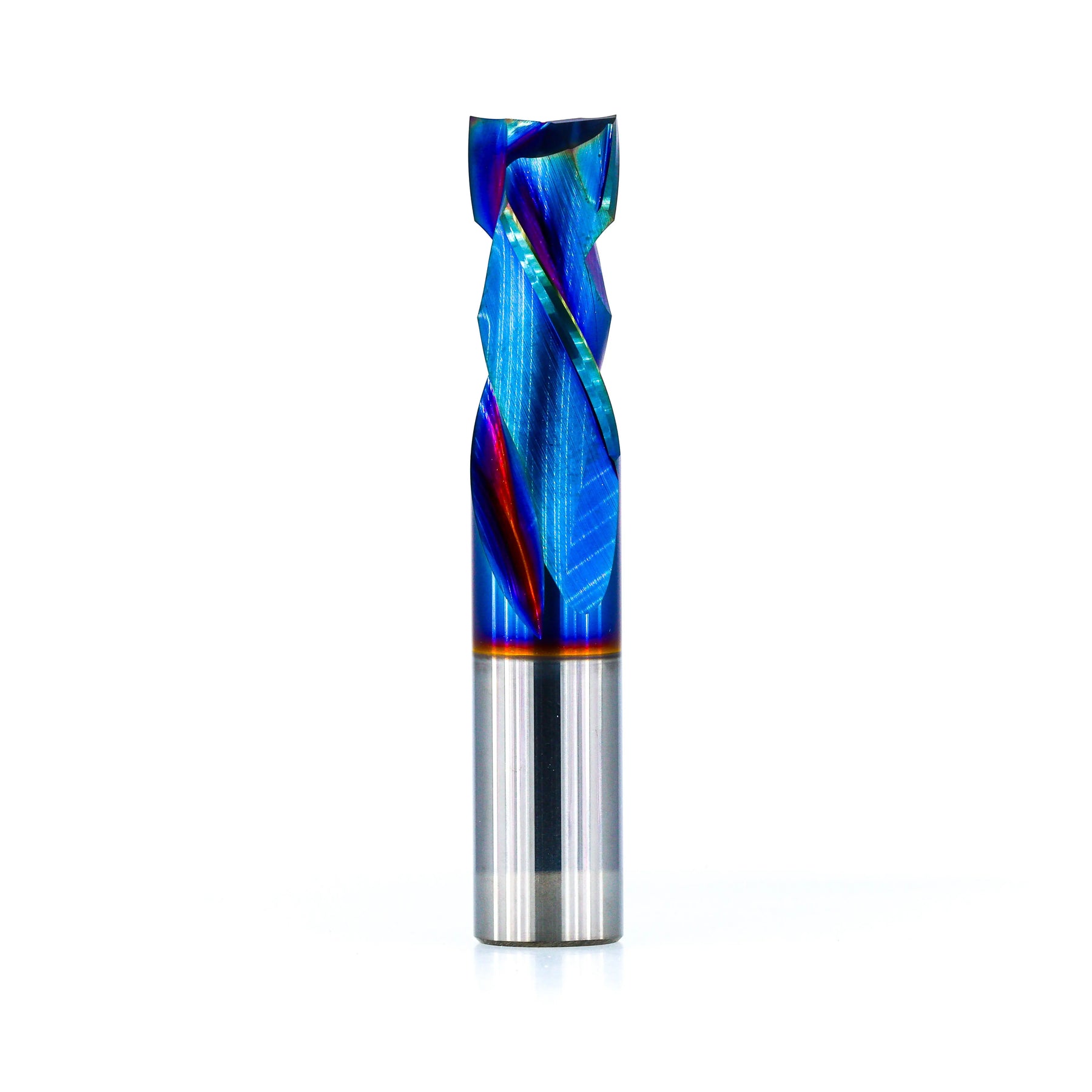

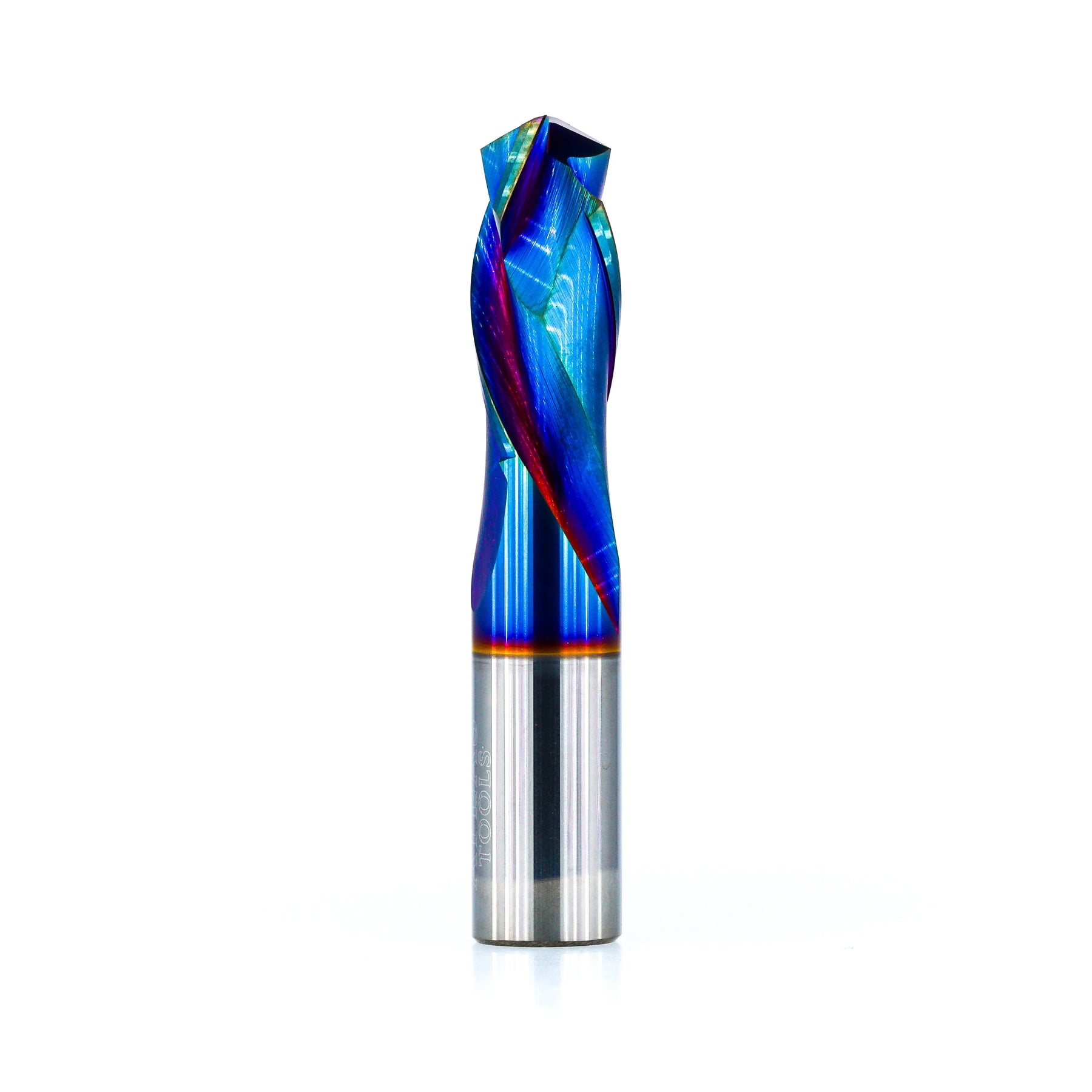

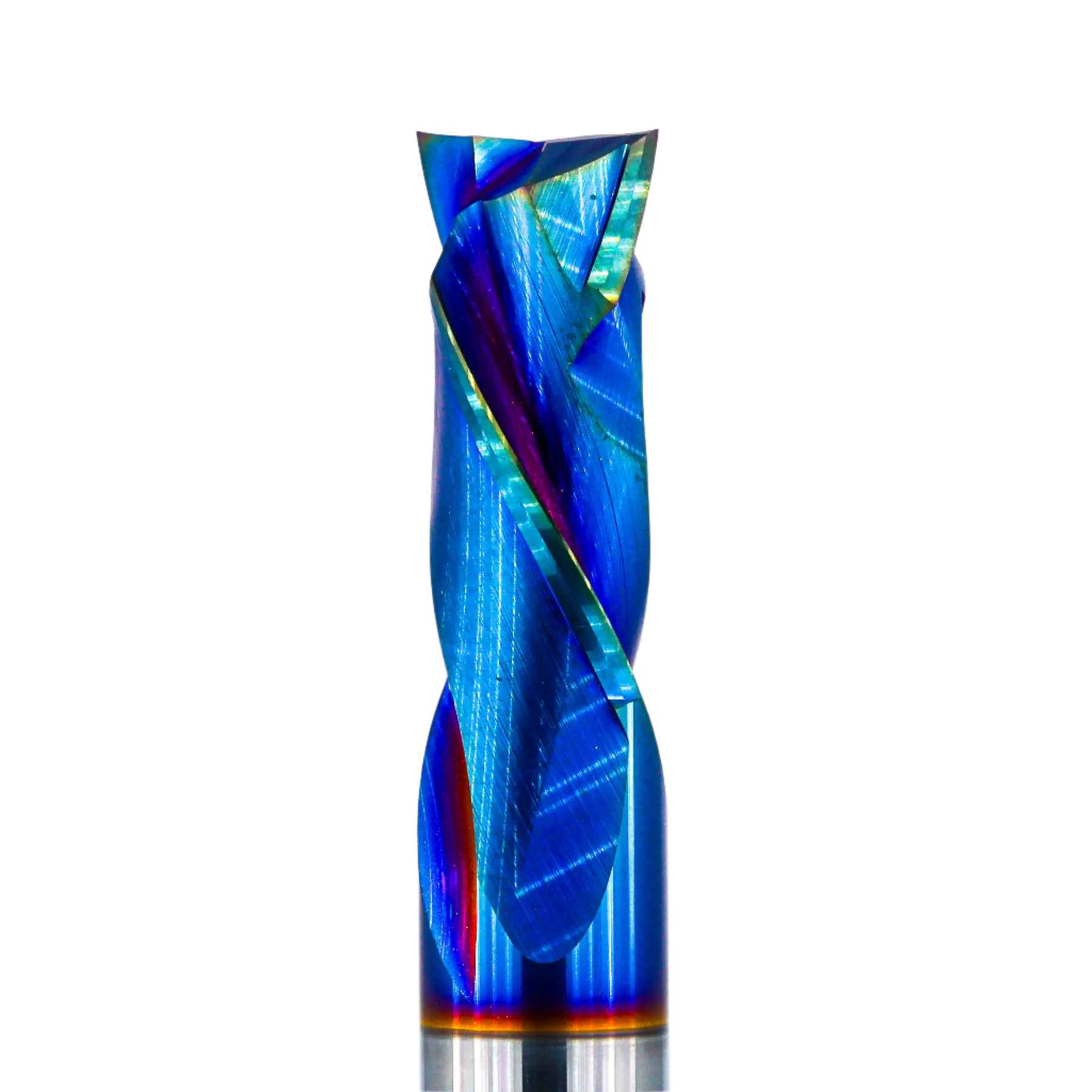

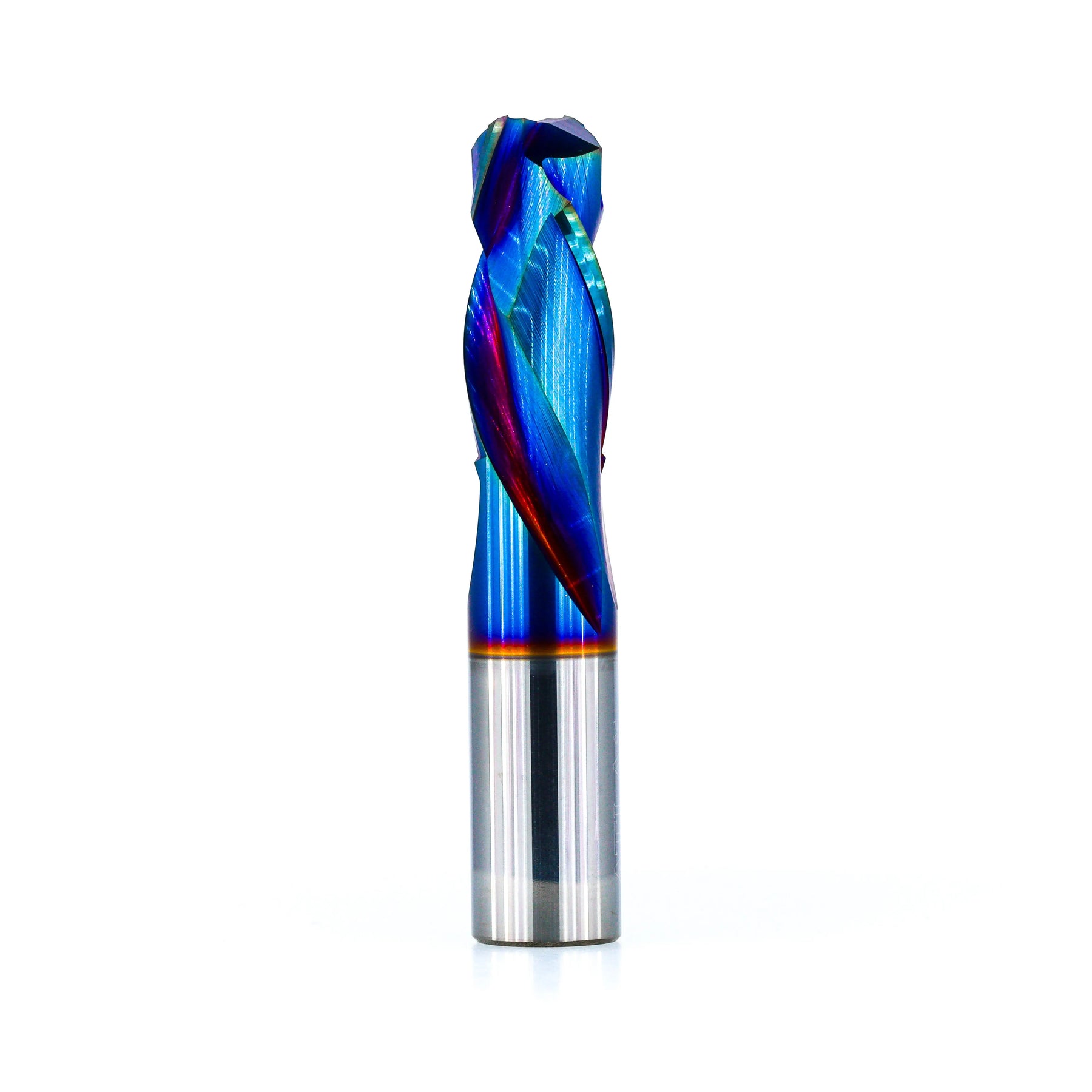

Compression Spiral Router Bit - 10x22 2F (Nano Coating)
Built for clean cutting, reliable tool life and professional results.
$115.00
+GST
Sale
RRP
Standard Shipping Australia-wide just $12 at checkout
Secure checkout
256-bit SSL encrypted
Large Stocks
No delays
Expert support
Real advice
Specifications
Precision cutting. Clean results.
This Compression Bit combines both up-cut and down-cut flutes to deliver chip-free edges on the top and bottom surfaces of your workpiece. With a cutting size of 10mm × 22mm, it’s built for CNC routing, joinery, and furniture production. By pulling and pushing chips toward the centre, it leaves crisp edges on plywood, MDF, solid timber, and laminates.
Key benefits
Chip-free edges — compression geometry protects both faces for cleaner finishes and less rework.
Nano coating option improves heat resistance and lubricity, enabling higher feed rates and longer tool life.
2-flute stability — smoother finish, better dimensional accuracy, and consistent chip evacuation.
Ideal for CNC routing of wood, MDF, plywood, laminates and non-abrasive composites.
Built for tough runs in hardwoods, plywood and plastics where ordinary bits dull quickly.
| Spec | Result |
|---|---|
| Diameter | 10mm |
| Cut Length | 22mm |
| Shank (Collet Size) | 10mm |
| Overall Length | 38mm |
| Flutes | 2 |
| Coating | Nano (NaCO) |
DLC or nano coating for low-friction cutting
An optional DLC or advanced nano coating enhances heat resistance and lubricity, helping prevent chip welding and reducing heat build-up. The result is cleaner edges, more consistent finishes, and longer tool life in demanding materials.
Reduced friction means less heat, improved chip evacuation, and more reliable results on long production runs.
Versatility and benefits
Thanks to its 2-flute compression geometry, this bit excels at dados, grooves, slots, mortises, and edge trimming. It’s trusted by cabinetmakers, sign makers, and CNC hobbyists for cutting hardwoods, laminates, veneers and sheet goods. Whether you’re pocketing, trimming laminates, or nesting parts, this compression bit improves productivity and finish quality.
Why Atlas?
Longer tool life
Built for durability and wear resistance.
Cleaner cut edges
Engineered for best quality.
Best Carbide
Better Results
Numerous Coatings
Reduces friction, heat and promotes long tool life.
MUST HAVE PRODUCTS
Hand-picked products and collections that pair well with this item.

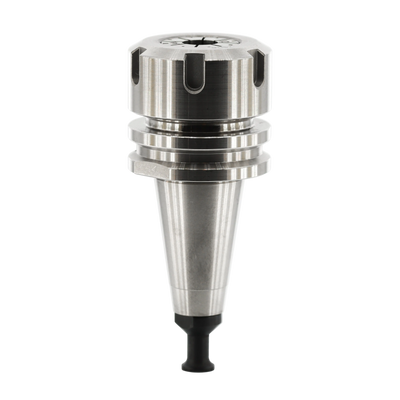

CNC Tool Holders
VIEW RANGEPRODUCT FEATURES
Key features engineered for cleaner cuts, longer tool life and better machining performance.
Polished Flutes
For Maximum Chip Evacuation and reduction of heat
Premium Carbide
We use the best carbide for each application - From German Ceratizit to Kennametal.
Compression Geometry
Prevents burrs and minimizes part lift during cuts
Nano Coating
Excellent Heat Resilliance and Increases tool durability by 2-3 times.
Customer Reviews
Real feedback from workshops, sign shops, fabricators and CNC operators using Atlas tooling.
No reviews are available yet.
Submit a Review
We appreciate your reviews.
SUITABLE MATERIALS
This tool is recommended for the following materials.
