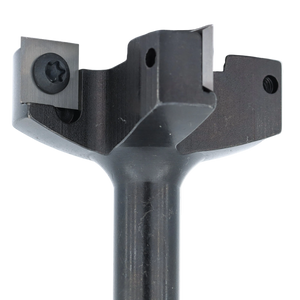

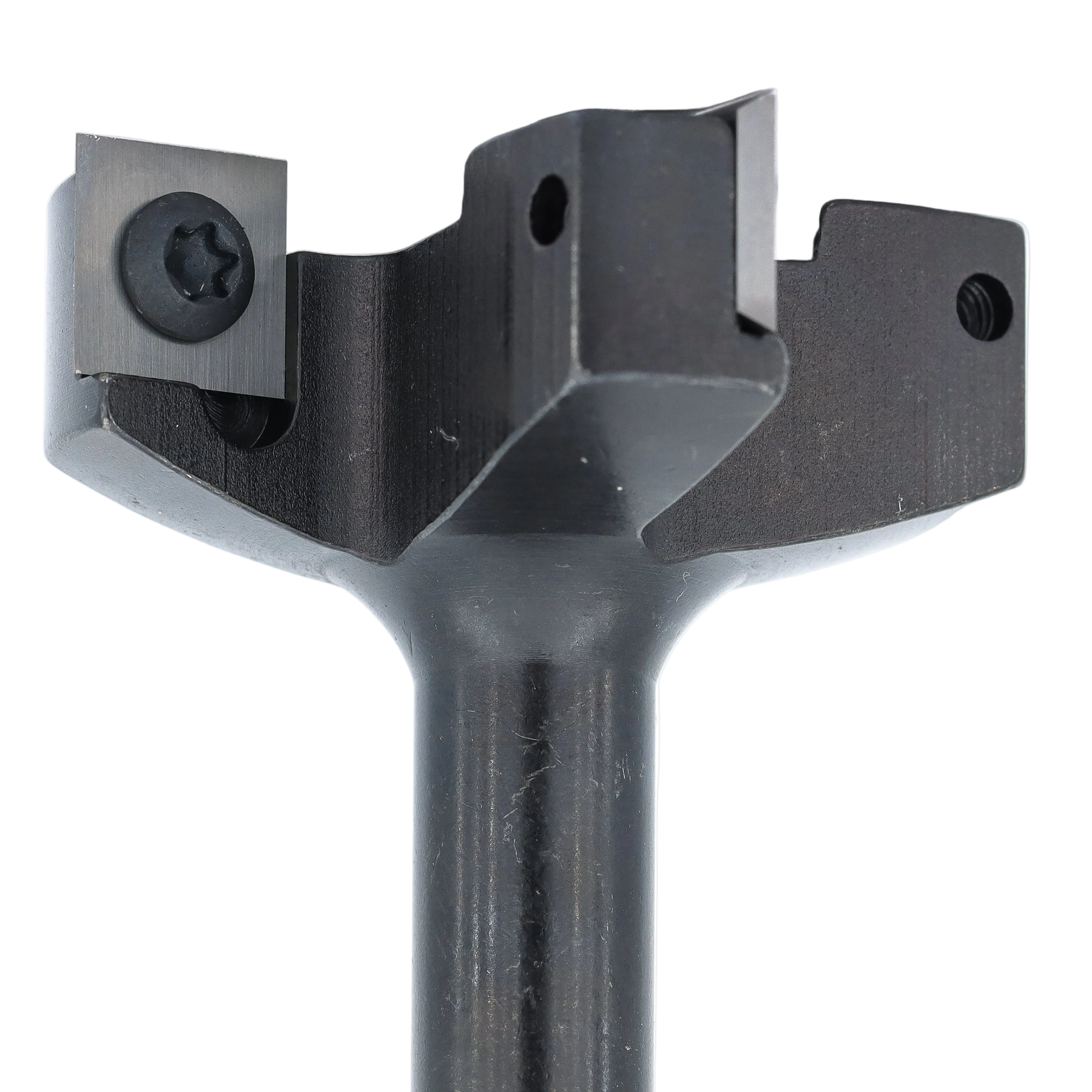

Atlas Tools Surface Planer Router Bit MAIN SHOT

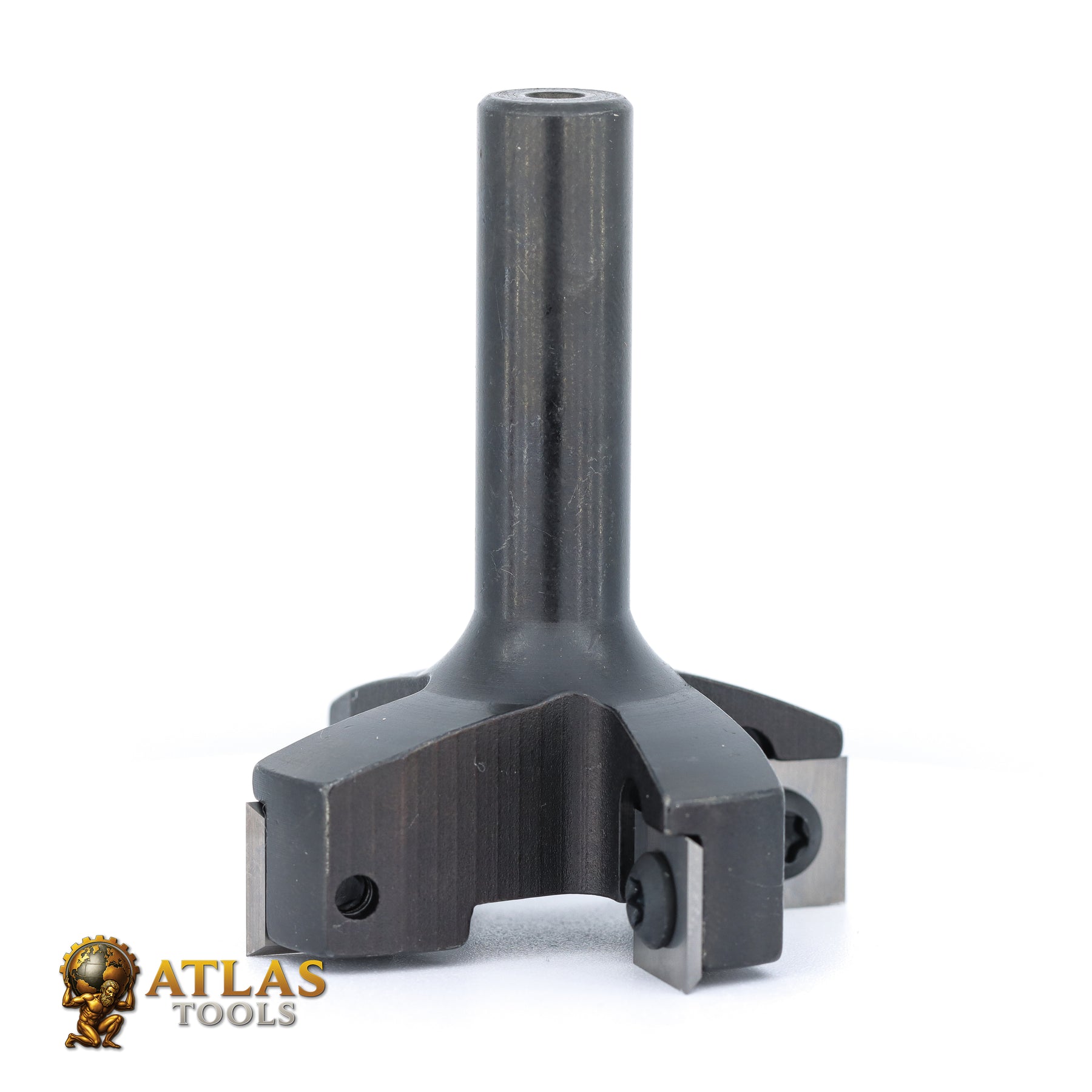

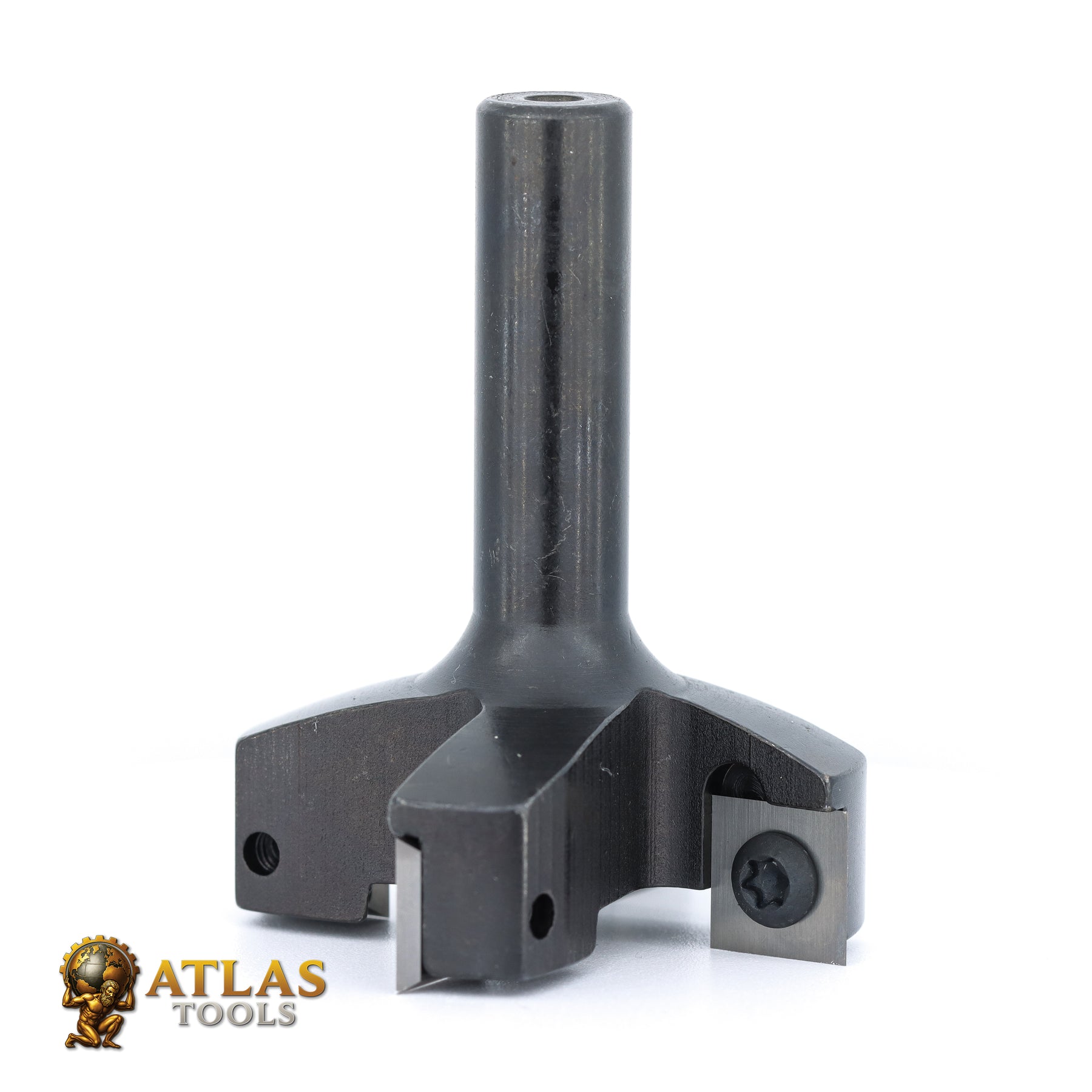

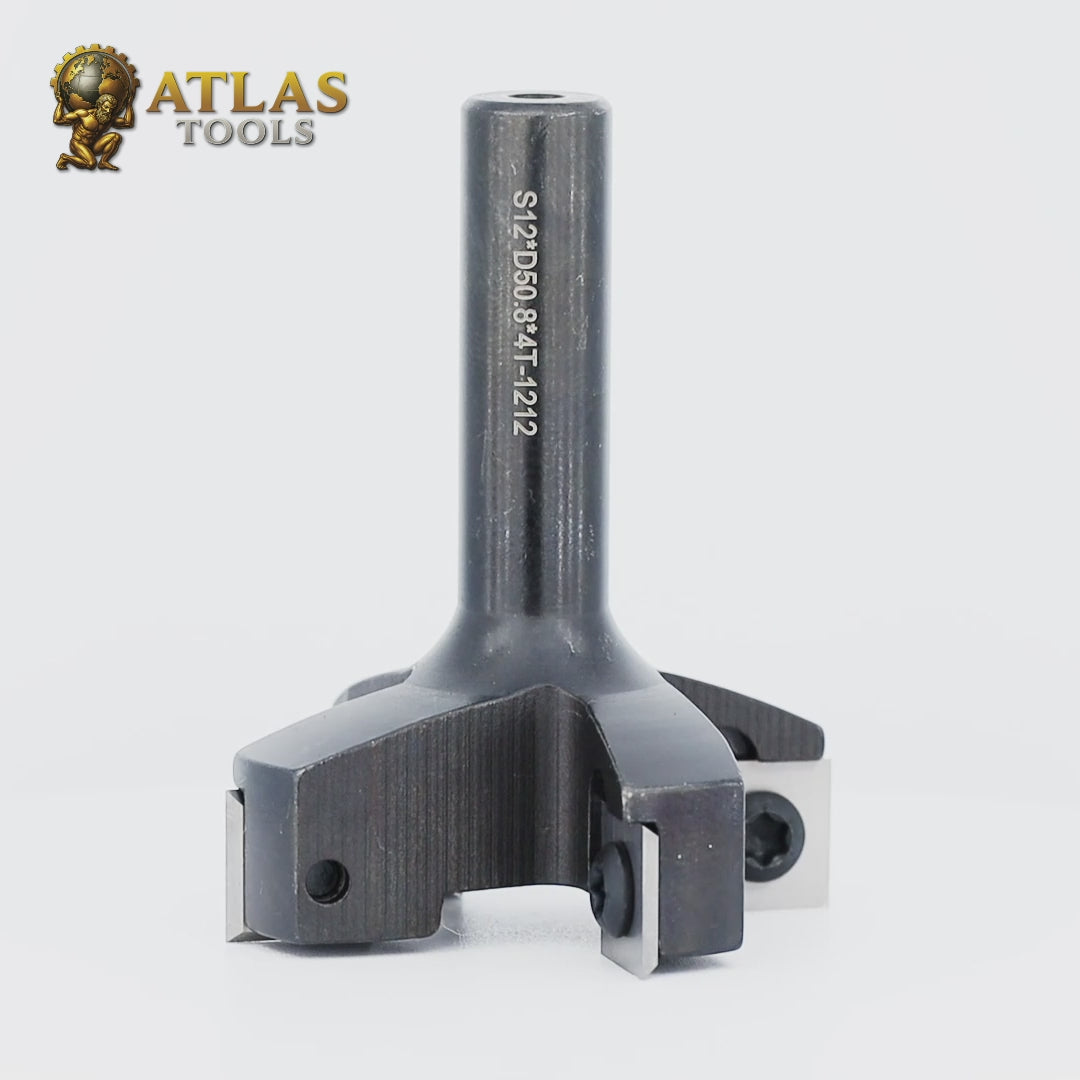

Atlas Tools Surface Planer Router Bit
Atlas Tools Surface Planer Router Bit
Atlas Tools

Surface Planer Router Bit - 50.8x12

Built for clean cutting, reliable tool life and professional results.
$250.00 +GST
Standard Shipping Australia-wide just $12 at checkout
Secure checkout 256-bit SSL encrypted
Large Stocks No delays
Expert support Real advice

Specifications

Precision cutting. Clean results.

This Atlas Tools Surface Planer Router Bit is built for fast, clean flattening and surfacing across large areas. With a 50.8mm cutting diameter, 12mm shank and 4 replaceable 12x12 carbide inserts, it is ideal for CNC spoilboard resurfacing, timber slab flattening and board levelling.
Key benefits
50.8mm cutting diameter for fast surfacing over large flat areas.
4 replaceable carbide inserts for practical maintenance and extended cutter body life.
Produces a flat, clean finish when levelling spoilboards, slabs and timber panels.
Ideal for CNC surfacing of MDF spoilboards, hardwood slabs, softwood, plywood and timber-based sheet materials.
Wide planer head reduces machining time compared with smaller-diameter router bits.
Great for spoilboard resurfacing, board levelling, slab flattening and surface preparation.
12mm shank for strong tool holding in suitable CNC router collets.
Uses 12x12 replacement inserts, sold separately for easy cutter maintenance.
Spec Result
Cutting Diameter 50.8mm
Shank / Collet Size 12mm
Insert Quantity 4 inserts
Insert Size 12x12mm
Insert Type Replaceable carbide inserts
Application Surface planing, spoilboard surfacing, slab flattening and board levelling
Suitable Materials MDF, plywood, hardwood, softwood and timber-based sheet materials
Replacement Inserts Sold separately
Need 12x12 replacement inserts?
Use this Product →
Replaceable 12x12 insert system
The cutter body uses four 12x12 carbide inserts. When an edge becomes worn, the inserts can be rotated or replaced instead of replacing the full surface planer body. This makes the tool practical for regular spoilboard surfacing, timber flattening and workshop levelling work.
Use shallow passes and stable workholding for the cleanest finish, especially when flattening uneven slabs or resurfacing worn spoilboards.
Versatility and benefits
This surface planer is suited to CNC users who need to flatten slabs, clean up glued panels, resurface spoilboards, level MDF sheets or prepare timber before finishing. The wide 50.8mm cutter head removes material efficiently, while the 12mm shank provides a strong setup for suitable CNC routers.

Why Atlas?

Longer tool life Built for durability and wear resistance.
Cleaner cut edges Engineered for best quality.
Best Carbide Better Results

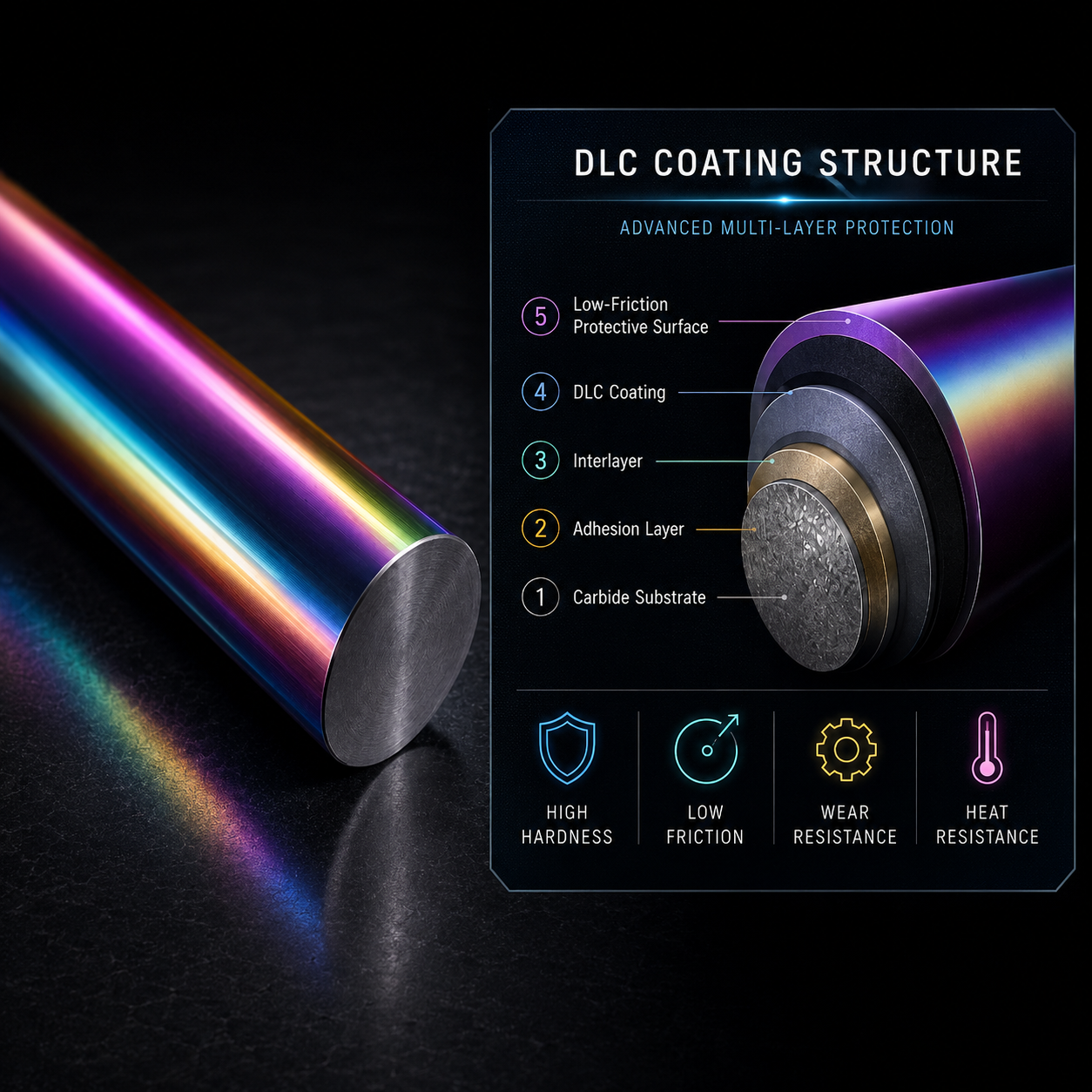

Numerous Coatings Reduces friction, heat and promotes long tool life.

SUITABLE MATERIALS

This tool is recommended for the following materials.

NEED HELP?

Speak with the Atlas Tools team with any questions.

TALK TO OUR TEAM

Contact us for product advice, trade support and quick recommendations.

Trade specialists Real advice from real people
Trade specialists Real advice from real people
Quick recommendations Get the right bit, fast
Support when you need it Before, during and after the sale

You May Also Like

Frequently Asked Questions

Collapsible content

Why Trust our Tools

We use the very same tools we sell in our own CNC and Trade work, and have been for years. And trust, we have used and been frustrated with expensive sub-par tooling in the market like you have; and we want you to experience what its like to use amazing tools.

What if my Tool prematurely Snaps?

Likelyhood is that this is either due to incorrect speed/feed rates, the wrong diameter (size) being used, or too much material being removed in one pass.
Suggested fixes include: upgrading to a larger diameter tool, checking the material compatability and speed/feed recommendation on our product's page, or consulting our team on better recommendations.

How do I get the best tool Life?

Clean off any aluminium or plastic swarf that may be stuck to the tool, and wipe down with Isopropyl Alcohol, or Methylated Spirits.
Additionally, in running carbide tools, make sure that workholding is rigid and loose parts are secured during cutting to prevent vibration and premature tool snapping or chipping.
Ensure tool paths include lead-ins, and that tool stick-out is a minimal as possible.
Make sure you are using premium good-quality collets and tool holders with high-accuracy

How fast are orders dispatched?

Same day if before 11am, otherwise the next morning.
If your order is urgent, please add notes in the order and the team may be able to fast-track dispatch.

What if I ordered the wrong bit?

If you wish to return, please see our return policy in the footer. There is a 15% restocking fee and freight is the customers responsibility.

Can I get technical advice before ordering?

Absolutely. Please feel free to call the team, who are more than happy to help, give guidance and point you in the right direction for your requirements.

Do we offer trade pricing or bulk discounts?

Yes. Please contact the team first before ordering. We will assess the quantity and may provide bulk discounts via a coupon or setting you up with an account.

Can I use CNC router bits in a handheld router?

Yes, absolutely. You may be more prone to backlash and chatter without a rigid setup.

How do I get the best edge quality?

Sharp new tools always leave the best edge finish; therefore it is advantageous to use a roughing tool, and a new clean finishing tool for the last pass
